Loop Antennas
Product description

Active Loop Antennas / Magnetic Field Probes
CISPR 15 3-dimensional loop antenna van Veen

Passive Magnetic Antennas, RX-Loop Antennas

Passive Magnetic Antennas, TX-Loop Antennas





Magnetic Antennas, TX-Loop Antennas

HFRA 5148

Circular transmitting loop antenna diam. 180 mm, 1 turn

HFRA 5149

Circular transmitting loop antenna 9 kHz – 30 MHz, diam. 500 mm including 50 Ohm 20 Watt termination, N-connectors.

HFRA 5152

Circular transmitting loop antenna diam. 250 mm, DC-3 MHz

HFRA 5153

Circular transmitting loop antenna diam. 180 mm, 0-20 (30) MHz, 5 W

HFRA 5154

Circular transmitting loop antenna diam. 100 mm, 0.1 – 30 MHz, Transformer 50 Ohm, 0.5 W

HFRA 5155

Circular Transmitting VHF – UHF loop antenna, diam. 50 mm,

HFRA 5156

Circular Transmitting Loop Antenna diam. 50 mm, 0-5 MHz, 2 W, 10 turns

HFRA 5157

Circular Transmitting Loop Antenna diam. 50 mm, 0-20(30) MHz, 3 W, 2 turns

HFRA 5158

Circular Transmitting Loop Antenna diam. 180 mm, 0-2 MHz, 5 W, 10 turns

HFRA 5159

Circular Transmitting Loop Antenna diam. 250 mm, 0-400 kHz, 5 W

HFRA 5170

Cal. Loop 3 W, diam. 100 mm, 0-30 MHz, 1 turn, 250 Ohm

HFRA 1356

Circular Transmitting Loop Antenna diam. 250 mm, resonating at 13.56 MHz

HFRA SF02G

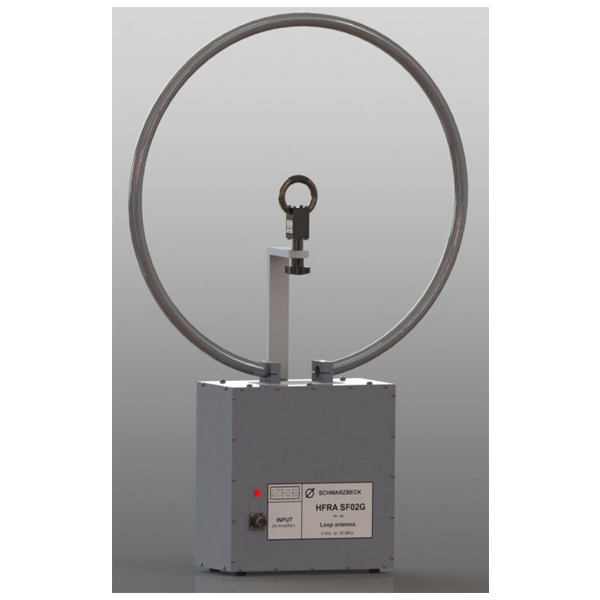

Tuneable resonant magnetic loop antenna to generate extremely high magnetic fields in the range 10 kHz to 30 MHz acc. to VG95373-13:2008-11 and VG95373-23:2008-11. Including sensor loop HFRAE 5163 und control cable.



Passive Magnetic Antennas, RX-Loop Antennas

HFRAE 5160

Receiving VHF – UHF loop antenna, diam. 50 mm, 2-300 MHz, transformer

HFRAE 5161

HF RX Loop, diam. 100 mm, 70 k-120 MHz, 1 turn, transformer

HFRAE 5162

VLF-HF RX Loop, diam. 250 mm, 50 k-30 MHz, 1 turn, transformer

HFRAE 5163

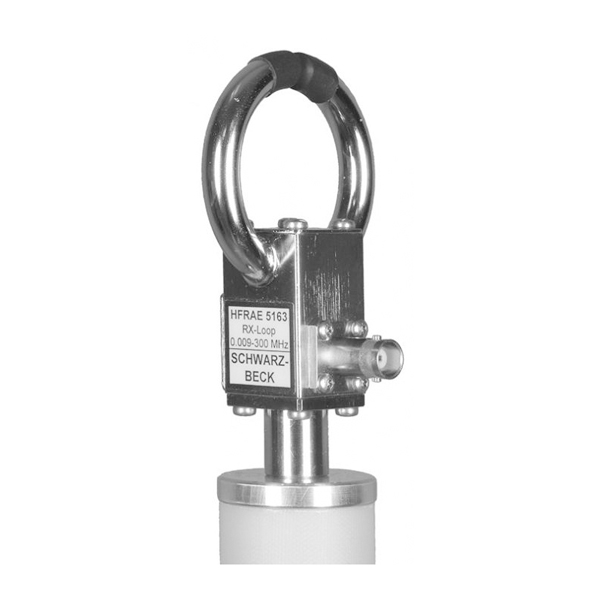

Passive magnetic loop antenna 9 kHz – 400 MHz, 1 turn, transformer, diam. 50 mm



CISPR 15 3-dimensional loop antenna van Veen

HXYZ 9170

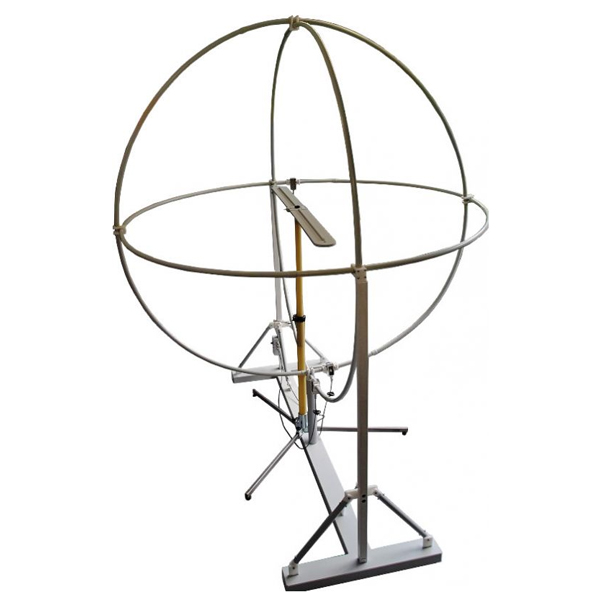

3-dimensional large loop antenna, diam. 2 m, acc. EN 55015 / CISPR 15, Socket and Coaxial switch recommended

Socket for

HXYZ 9170

Socket and mounting equipment for large loop HXYZ 9170

Opt. fold HXYZ 9170

Option foldable for HXYZ 9170: The joints of the base version of HXYZ are stiff. The option foldable replaces the stiff joints which have to be removed by screws by rotatable connections. Only one locking pin per joint has to be removed to collapse the antenna. The socket will additionally be equipped with wheels. This option allows to park the antenna folded close to a wall and to set it up in less than 5 minutes.

Coaxial

3 in one coaxial switch for manual / remote operation including cable set

Switch for

HXYZ 9170

(3 BNC cables with braid current blockers) for large loop HXYZ 9170

PS 230/12

or

PS 120/12

12 V DC ultra low emission trafo wall outlet plug in power supply for Coaxial Switch of HXYZ 9170, not required in case of manual switching or if switched remotely by a Schwarzbeck receiver or by an R&S receiver with 12V/100mA on pin 25 of the USER-Port. Is required in all other cases e.g. for R&S receivers with AUX Port or with USER-Port without 12V/100mA on Pin 25.

HXYZ 9170- RS USER Ad

HXYZ 9170-RS USER Adapter for remote control of the HXYZ 9170 Coaxial Switch by an R&S receiver with USER Port. 12 V Power Supply for Coaxial

Switch eventually required!

HXYZ 9170- RS AUX Ad.

HXYZ 9170-RS AUX Adapter for remote control of the HXYZ 9170 Coaxial Switch by an R&S receiver with AUX Port. 12 V Power Supply for Coaxial Switch required!

HFCD 9171

Calibration Balun / Dipole for HXYZ 9170 (recommended accessory: AM 9144)

CDA 9271

Adapter to hold HFCD 9171 on AM 9144, 3/8’’ female large camera thread.

HXYZ 9170

3m

3-dimensional large loop antenna, diam. 3 m, acc. EN 55015 / CISPR 15, Socket and Coaxial switch recommended. Annex C CISPR 16-1-4 Ed 3 Fig. C7 not ap- plicable to the 3 m version, higher tolerances for the transmission between

10 and 30 MHz will apply.

Opt. Sockel 3m

Option: Socket and mounting equipment for large loop HXYZ 9170 3m

Coaxial Sw.

3m

Accessory: 3 in one coaxial switch for manual / remote operation including cable set (3 BNC cables with braid current blockers) for large loop HXYZ 9170 3m



Active Loop Antennas / Magnetic Field Probes

FMZB 1513

Active loop antenna, 9 kHz to 30 MHz, constant antenna factor 20 dB/m with built in NiMH-batteries, detachable glass fiber handle 180 mm. Optimized for mobility.

ACS 110

Option: Charger ACS 110 for FMZB 1513.

500 mm

Handle

Option for FMZB 1513: Additional glass fiber handle of 500 mm length.

CCA 1513

Transport case for FMZB 1513 and accessories.

FMZB 1519 B

Active magnetic loop antenna acc. to CISPR 16, 9 kHz to 30 MHz, constant an- tenna factor 20 dB/m, built in rechargeable NiMH-battery.

ACS 110

Option: ACS 110 charger for FMZB 1519 B

HFS 1546

Active magnetic Field Probe with shielded 50-mm-Loop, 150 kHz – 400 MHz

ACS 110

Option: ACS 110 charger for HFS 1546

FMZB 1512

Active magnetic loop antenna with 15 cm loop diameter for mobile applications with built in rechargeable batteries, 9 kHz to 30 MHz, antenna factor adjustable.

ACS 110

Option: ACS 110 charger for FMZB 1512

Product specifications

 FMZB 1519 B

 HXYZ 9170

 RX-Loop Antennas

 TX-Loop Antennas
