Type
|
Topology
|
Impedance
|
Current max.
|
Paths
|
Options
|
|
CISPR 16-1-2 socket
|
||||||
NSLK 8117
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
2 x 10 A
|
2
|
|
|
NSLK 8127
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
2 x 16 A
|
2
|
RC, PLC
|
|
NSLK 8126
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
2 x 16 A Schuko
4 x 16 A CEKON |
4
|
RC
|
|
NSLK 8128
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
2 x 16 A Schuko and
4 x 32 A CEKON |
4
|
RC
|
|
NSLK 8163
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
4 x 64 A CEKON
|
4
|
RC
|
|
CISPR 16-1-2 Wing Terminals
|
||||||
NNLK 8121
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
4 x 50 (100) A
|
4
|
RC, Hochstrom, 400/700V, Lüfter
|
|
NNLK 8122
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
2 x 50 A
|
2
|
|
|
NNLK 8129
|
V-LISN
|
50 µH || 50 Ω
|
4 x 200 (300) A
|
4
|
RC, 400/700 V, Lüfter
|
|
NNLK 8129-2 HV
|
V-LISN
|
50 µH || 50 Ω
|
2 x 200 (300) A
|
2
|
RC,TC
|
|
NNLK 8130
|
V-LISN
|
50 µH || 50 Ω
|
4 x 400 (500) A
|
4
|
RC
|
|
NNLK 8140
|
V-LISN
|
50 µH || 50 Ω
|
1 x 800 (1000) A
|
single
|
|
|
Automotive
|
||||||
NNHV 8123
|
V-LISN
|
5µH || 50 Ω
|
70 (100) A
|
single
|
|
|
NNHV 8123-200
|
V-LISN
|
5µH || 50 Ω
|
200 A
|
single
|
|
|
NNHV 8123-400
|
V-LISN
|
5µH || 50 Ω
|
400 A
|
single
|
|
|
NNBM 8124
|
V-LISN
|
(5µH + 1 Ω) || 50 Ω
|
70 (100) A
|
single
|
N-connector
|
|
NNBM 8124-200
|
V-LISN
|
(5µH + 1 Ω) || 50 Ω
|
200 A
|
single
|
N-connector
|
|
NNBM 8124-400
|
V-LISN
|
(5µH + 1 Ω) || 50 Ω
|
400 A
|
single
|
N-connector
|
|
NNBM 8126 A 890
|
V-LISN
|
5 µH || 50 Ω
|
70 (100) A
|
single
|
DO-160
|
|
BAN 8508
|
|
|
8 A (DC)
|
single
|
|
|
BAN 8530
|
|
|
30 A (DC)
|
single
|
|
|
MIL
|
||||||
NNBL 8225
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
20 A
|
single
|
|
|
NNBL 8226
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
70 (100) A
|
single
|
|
|
NNBL 8226-HV
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
70 (100) A
|
single
|
|
|
NNBL 8226-2
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
70 (100) A
|
2
|
|
|
NNBL 8229-HV
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
200 A
|
single
|
|
|
NNBL 8230
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
300 A
|
single
|
|
|
NNBL 8240
|
V-LISN
|
(50 µH + 5 Ω) || 50 Ω
|
800 (1000) A
|
single
|
|
|
T-ISN
|
||||||

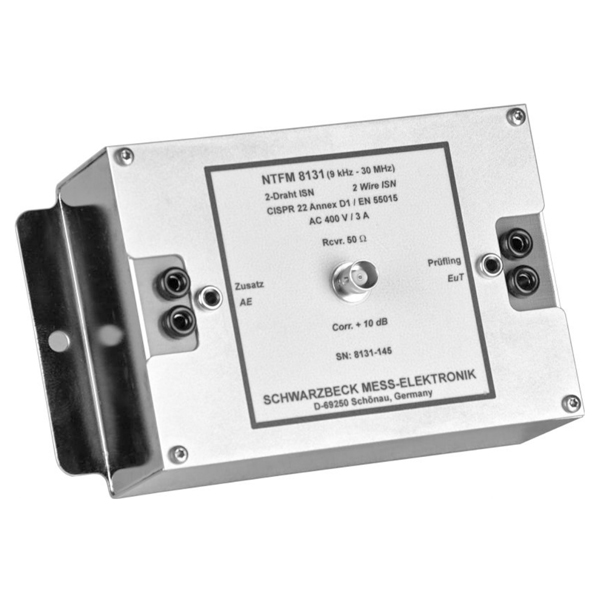

NTFM 8131
|
T-ISN
|
150 Ω ± 10%
|
3 A (AC)
|
2
|
|
|
NTFM 8158
|
T-ISN
|
150 Ω ± 20 Ω
|
600 mA DC (pair)
|
2
|
|
|
CAT5 8158
|
T-ISN
|
150 Ω ± 20 Ω
|
600 mA DC (pair)
|
2
|
|
|
CAT3 8158
|
T-ISN
|
150 Ω ± 20 Ω
|
600 mA DC (pair)
|
2
|
|
|

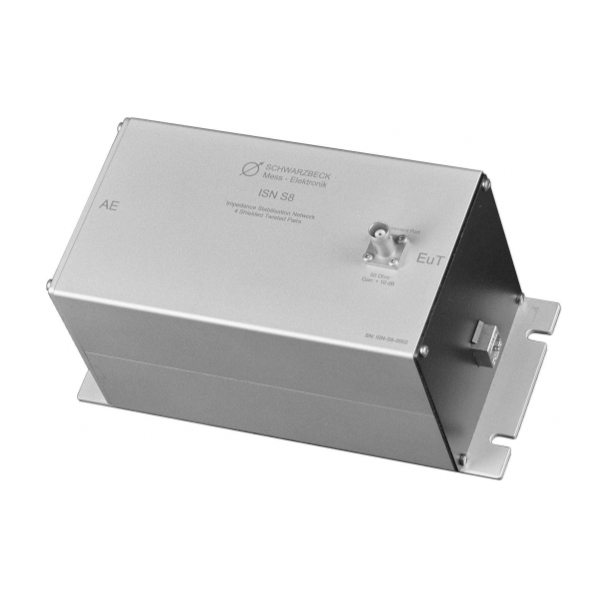

ISN S8
|
T-ISN
|
150 Ω ±20 Ω
150 Ω + 60 Ω /-45 Ω |
1 A (DC)
|
8
|
|
|
ISN S1
|
T-ISN
|
150 Ω ±20 Ω
150 Ω + 60 Ω /-45 Ω |
1 A (DC)
|
single
|
|
|
Special - LISN
|
||||||
Pilot ISN
|
|
150 Ω ±20 Ω
|
1.4 A DC
|
2
|
|
|
ECSS LISN1
|
|
(1.5 µH) || 50 Ω
|
10 A
|
2
|
|
|
ECSS LISN 2
|
|
(2 µH) || 50 Ω
|
10 A
|
2
|
|
|
ECSS LISN 2 - 75A
|
|
(2 µH) || 50 Ω
|
75 A
|
2
|
|
|
ECSS LISN 3
|
|
(0.7 µH) || 50 Ω
|
10 A
|
2
|
|
|
NPLC 8500
|
V-LISN
|
1 Ω
|
16 A
|
single
|
|
|
PVDC 8300
|
PV-LISN
Universal |
150 Ω common
100 Ω differental |
50 A (100 A with opt. fans)
|
2
|
Fans
|
|
PVDC 8301
|
PV-LISN
Universal |
150 Ω common
100 Ω differental |
200 A
|
2
|
|
|
TEMP 8400
|
Tempest-
V-LISN
|
1.4 kΩ
|
16 A
|
2
|
TEMP 8401
|
NNBM8124
NTFM 8131
ISN_S8
