Model

FREQ

Select Port

Size(W×D×H/mm)

DataSheet

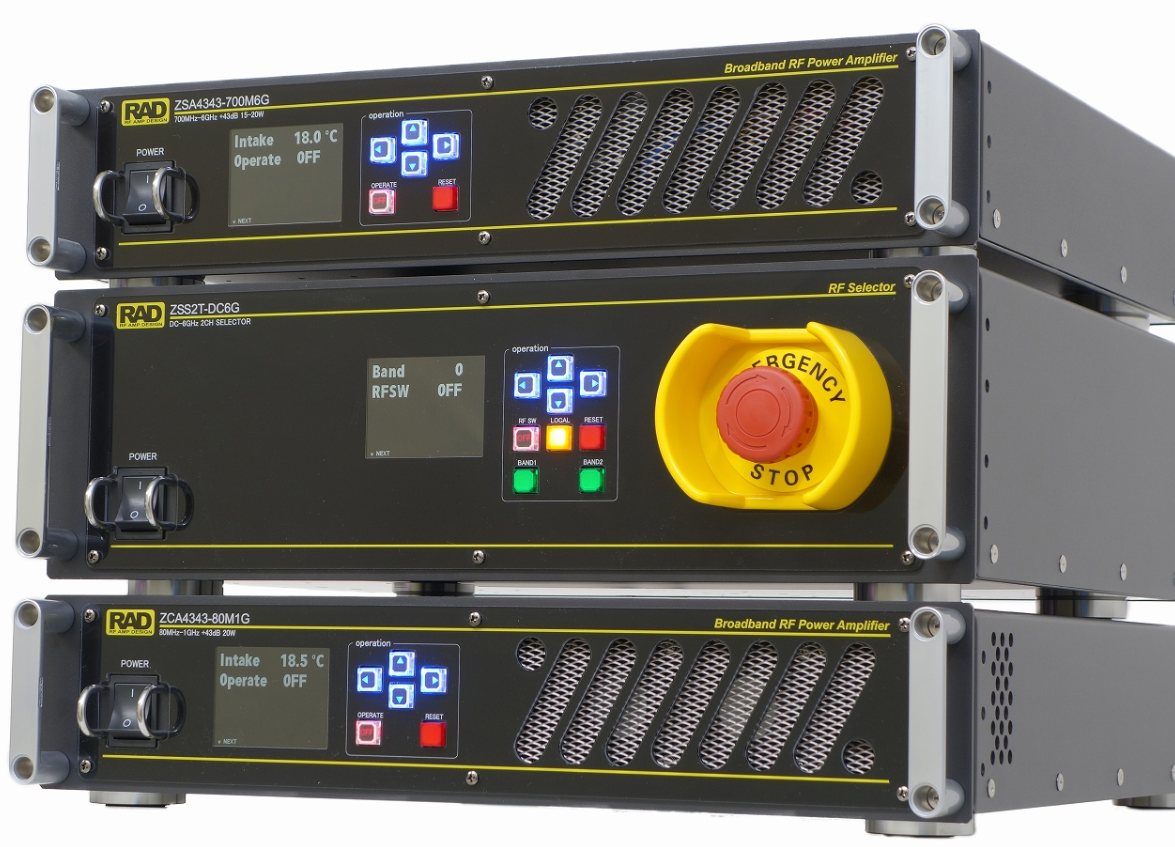

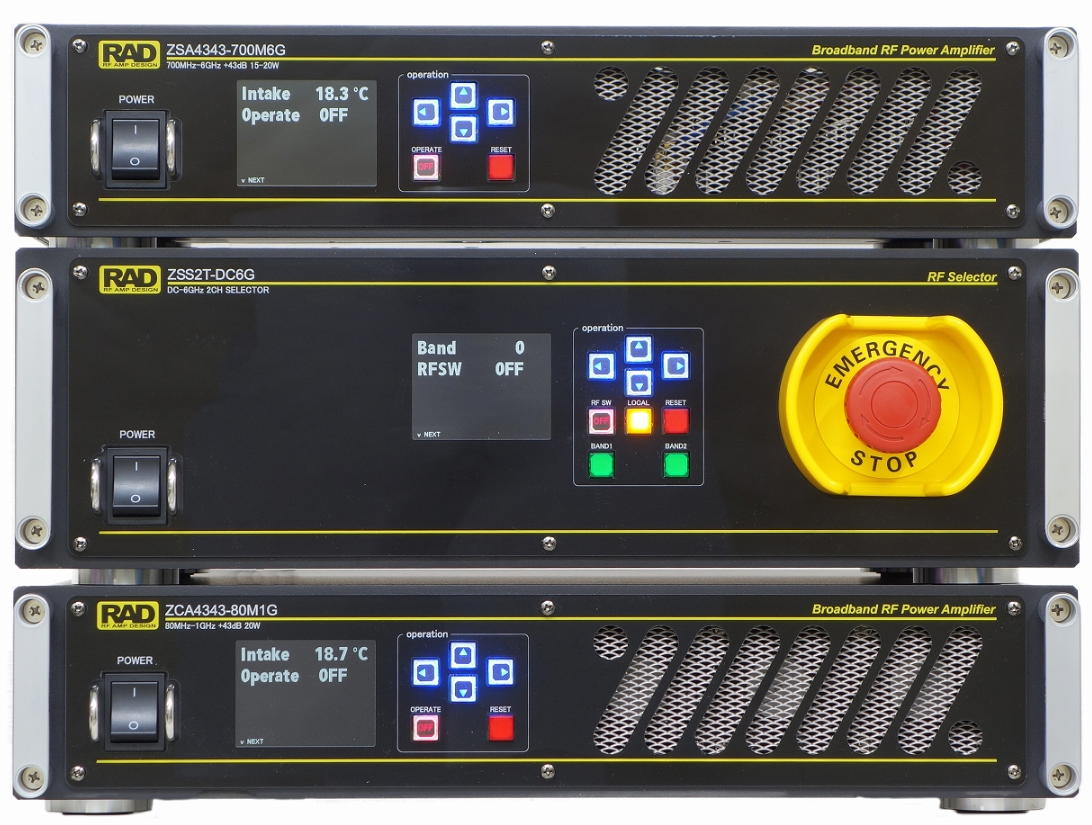

ZSS2T-DC6G

DC～6GHz

2-Port

480×350×132.5

ZSS3T-DC6G

DC～6GHz

3-Port

480×350×132.5

ZSS4T-DC6G

DC～6GHz

4-Port

480×350×132.5

ZSS6T-DC6G

DC～6GHz

6-Port

480×350×132.5

Option List

Option No

IEE488(GP-IB) Control

Option-1

FWD Monitor Selector

Option-2

REF Monitor Selector

Option-3

RF Output Selector High-Power Handling

Option-4

External RF Output Selector

Option-5

External Safety Interlock Switch Box

Option-6

Front Panel RF Input Selector Port

Option-7

Front Panel RF Output Selector Port

Option-8

Front Panel FWD Monitor Selector Port

Option-9

Front Panel REF Monitor Selector Port

Option-10

Interface Non-building

Option-99

RF Connector Type

Option-a～d

 RF SELECTOR SERIES & OPTION LIST
