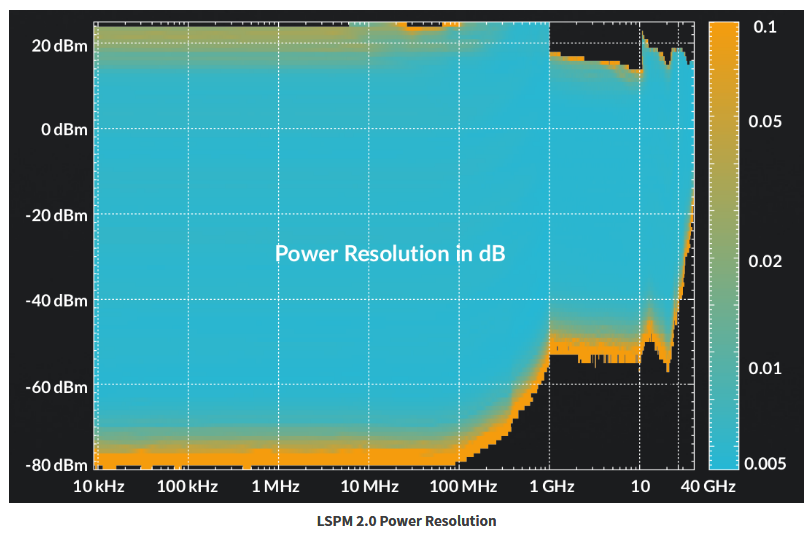

Compensation of linearity, frequency and an actively controlled power sensor temperature guarantee accurate measurements
from less than ‑75dBm to at least +12dBm. A dynamic range of >80dB is achieved for many frequencies.

The LSPM 2.0 Triple High-Speed Power Meter’s high sampling rate allows for high resolution time-domain signal analysis. The Power Meter can be synchronized with signal generators in order to realize high resolution pulse analysis.

LSPM 2.0 High-Speed Power Meters can be combined with LUMILOOP’s LSProbe E‑Field Probes to accelerate standard EMC measurements such as IEC61000‑4–3 and 61000–4‑21 by a factor of more than 100 over traditional setups.
Rearward connectors are available upon request.

\
