The TBLC08 50uH LISN is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard.

The device is designed for testing single phase, AC-powered equipment with supply voltages up to a maximum 240V and 8A.

Conducted noise can be measured on the phase and on the neutral conductor.

The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection.

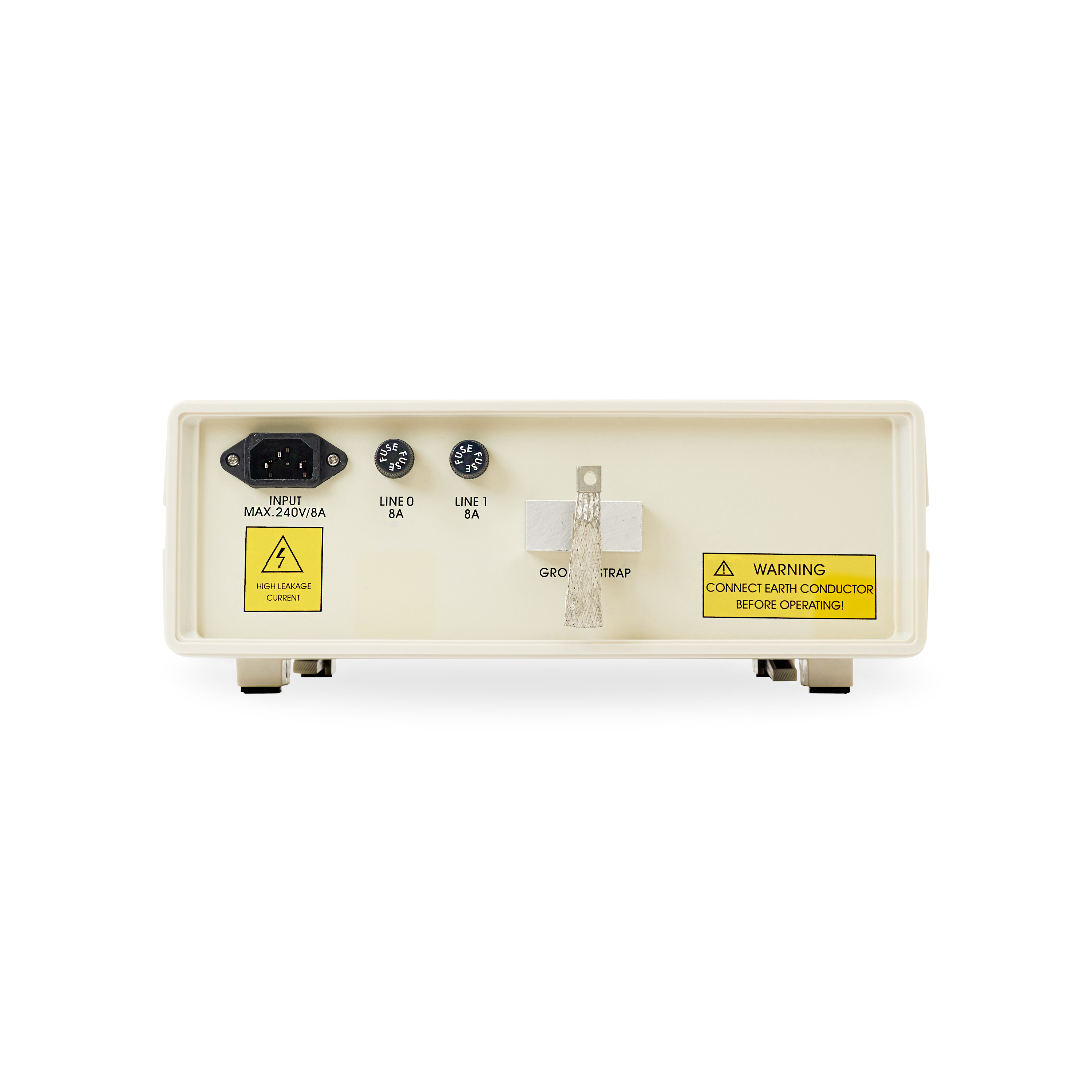

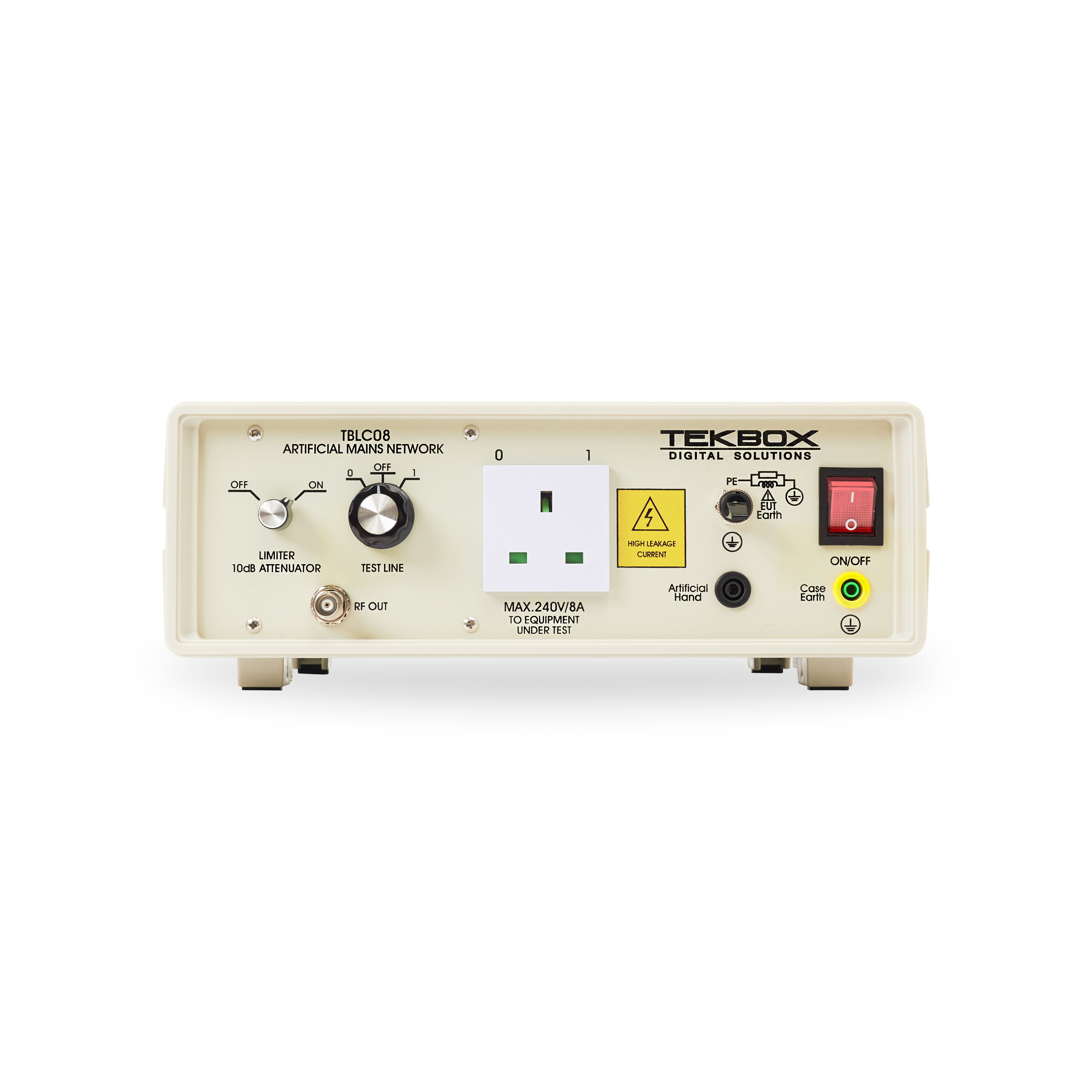

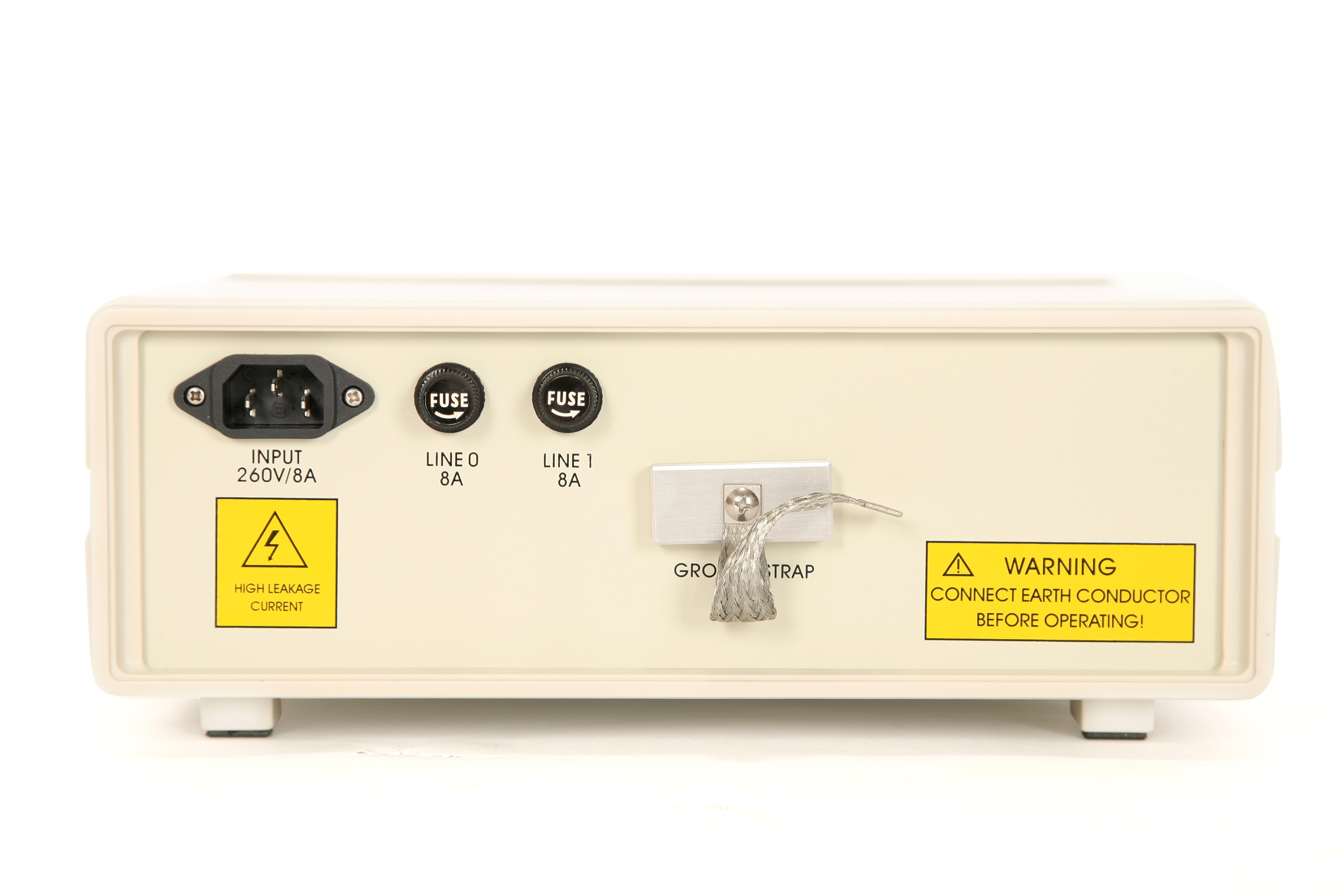

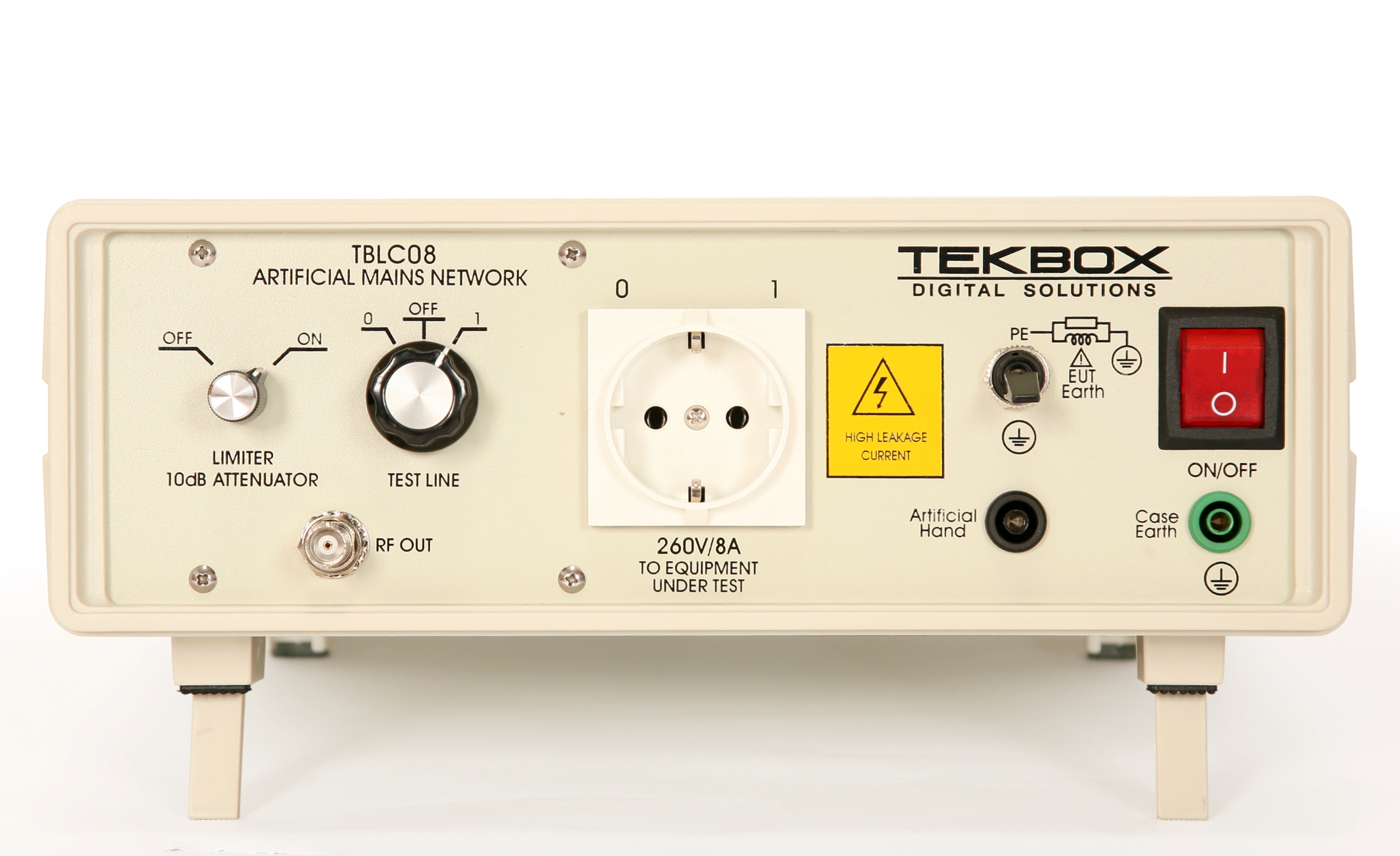

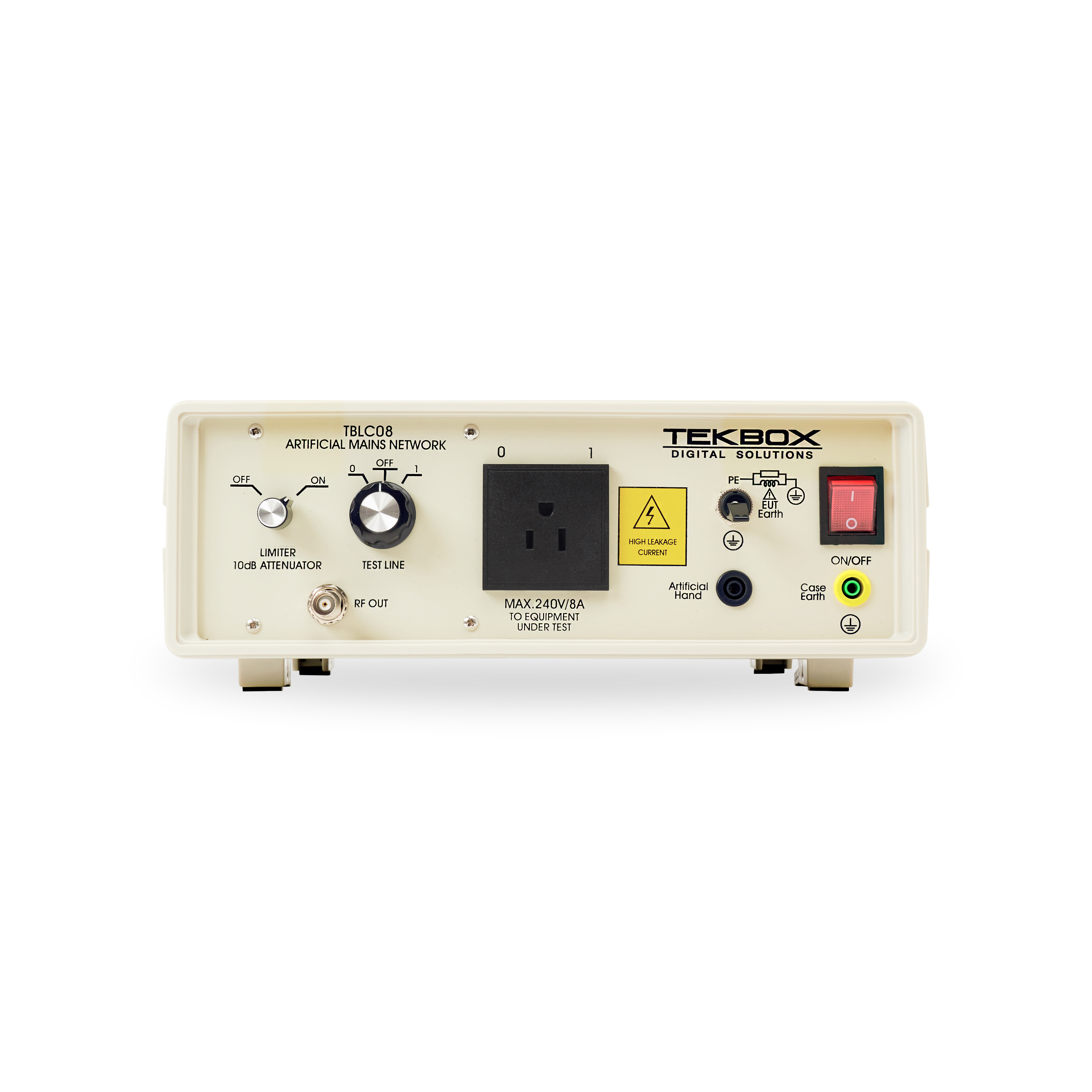

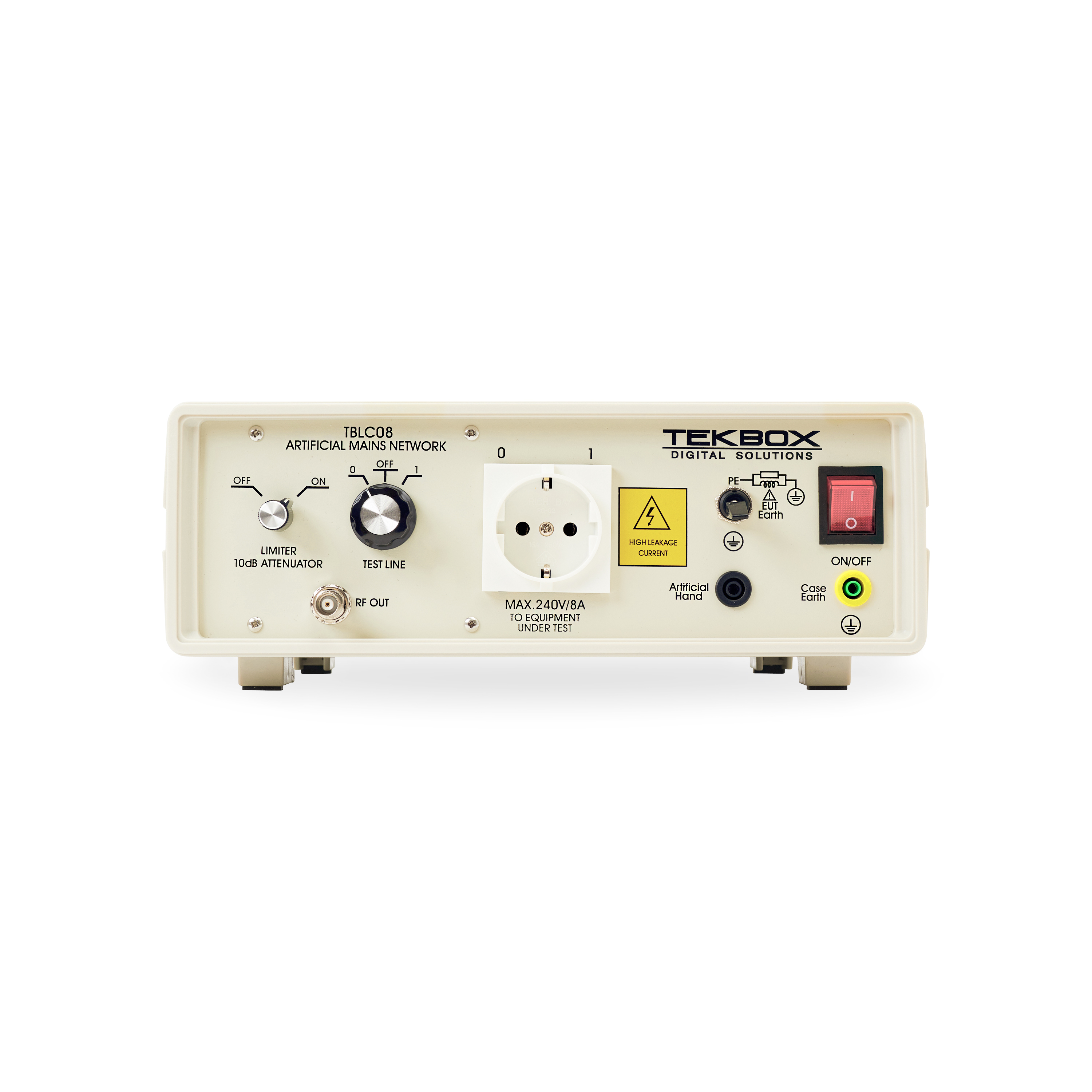

The device is available with country-specific DUT connectors.

• Frequency range: 9 kHz to 30 MHz
• Impedance: 50 Ω ║ (50 µH + 5 Ω)
• Artificial hand: 220 pF + 511 Ω
• Switchable PE: 50 Ω ║ 50 µH
• Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
• Air core inductors
• Line voltage: nominal 0-240V; max. 260V DC or AC / 50-60 Hz; CAT II
• Max. current: 8A @ 23°C
• DUT socket: country specific
• Measurement connector: 50 Ω BNC
• Power connector: IEC 60320 C13
• Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
• Safety: Safety Class I, IEC 1010-01
