IEC62560-1 Figure 8 Test Circuit For Non-Dimmable Lamp At Dimmer Or Electronic Switch
IEC60560-Fig8 temperature rise test equipment, led testing equipment
商品說明
Standard: IEC62560-1 Fig8 Purpose: Testing A Non-Dimmable Lamp At A Dimmer Or Electronic Switch
Testing A Non-Dimmable Lamp At A Dimmer Or Electronic Switch: 105 X 267 X220 W *D*H Mm Ammeter Input Power: AC 220V 50Hz
商品規格

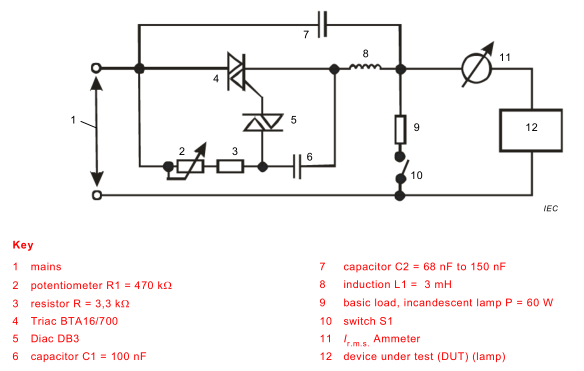

Test Circuit For Testing a Non-Dimmable Lamp at a Dimmer or Electronic Switch



1. Use

Applying non-dimmable self-ballasted lamps on a dimmer or an electronic switch is to be tested as a possible case of abnormal operation..

2. Reference standards

IEC60560-Fig8

4. Technical parameters

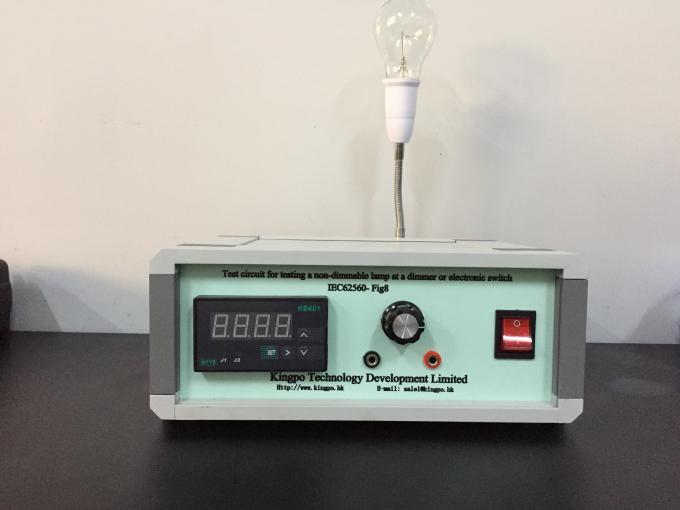

IEC62560-1 Figure 8 Test Circuit For Non-Dimmable Lamp At Dimmer Or Electronic Switch 0





Internal dimension 105 X 267 X220 W *D*H mm
2 potentiometer R1
3 resistor R
4 Triac BTA16/700
5 Diac DB3
6 capacitor C1 = 100 nF
7 capacitor C2 = 68 nF to 150 nF
8 induction L1 = 3 mH
9 basic load, incandescent lamp P = 60 W
11 I r.m.s. Ammeter
Ammeter input Power AC 220V 50Hz

Test procedure:

Determine R1 and S1 setting at which the maximum I r.m.s . occurs.

Test at this situation, and if the lamp passively fails within 60 min, repeat the test at 10 % lower I r.m.s . The lower I r.m.s . shall be set in the decreasing potentiometer resistance direction.



IEC62560-1 Figure 8 Test Circuit For Non-Dimmable Lamp At Dimmer Or Electronic Switch 1

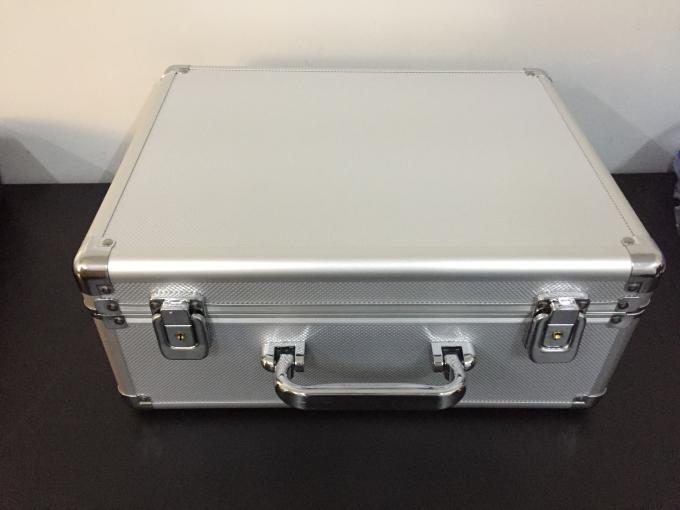

IEC62560-1 Figure 8 Test Circuit For Non-Dimmable Lamp At Dimmer Or Electronic Switch 2
