產品目錄 Products
Surface Mount SM46C / SM2015C _置地上型轉桌(5cm高)
- 1.2m/2.0m 5cm 高地上型轉桌
- 精確度:1度
- 承重: 363kg (SM46C) , 680kg(SM2015C)
- 光纖控制 (適合室內外)
商品說明

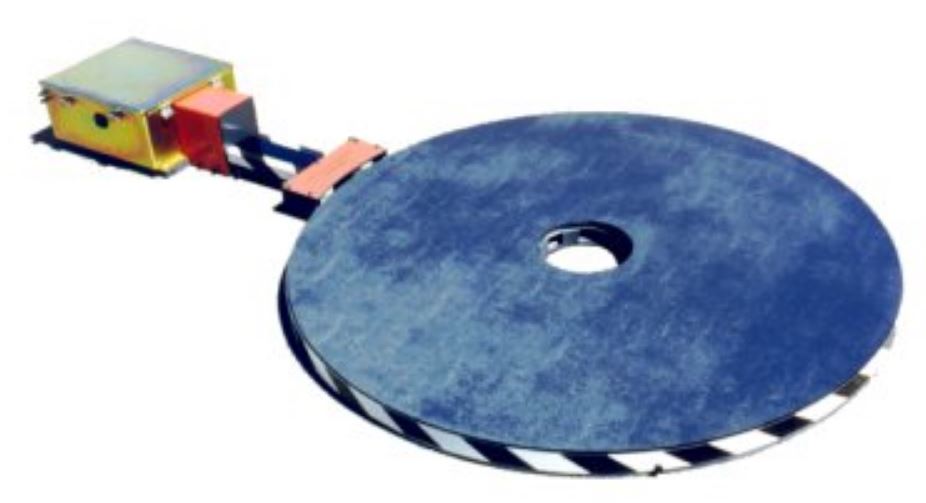

Model SM46C

  • No pit required
  • 5 cm high at table top
  • 800 pound running load
  • Non-slip drive belt
  • Cable access between turntable top and bottom
  • Fiber optic interface
  • Self-cleaning, fixed rollers
  • Non-conductive
  • 4 foot diameter
  • Motor box / table separation optional and customer specified
  • 1 degree position accuracy
  • Electrically shielded motor box
  • Maintenance free
  • Indoor / outdoor
  • Variable speed standard



Model Diameter Running Load Table Top Height
SM46C 1.2m (4 ft.) 800 lbs. 2 in. (5 cm)
SM411C 1.2m (4ft.) 1100 lbs. 3 in. (7.6 cm)
SM2015C 2m 1500 lbs. 3 in. (7.6 cm)

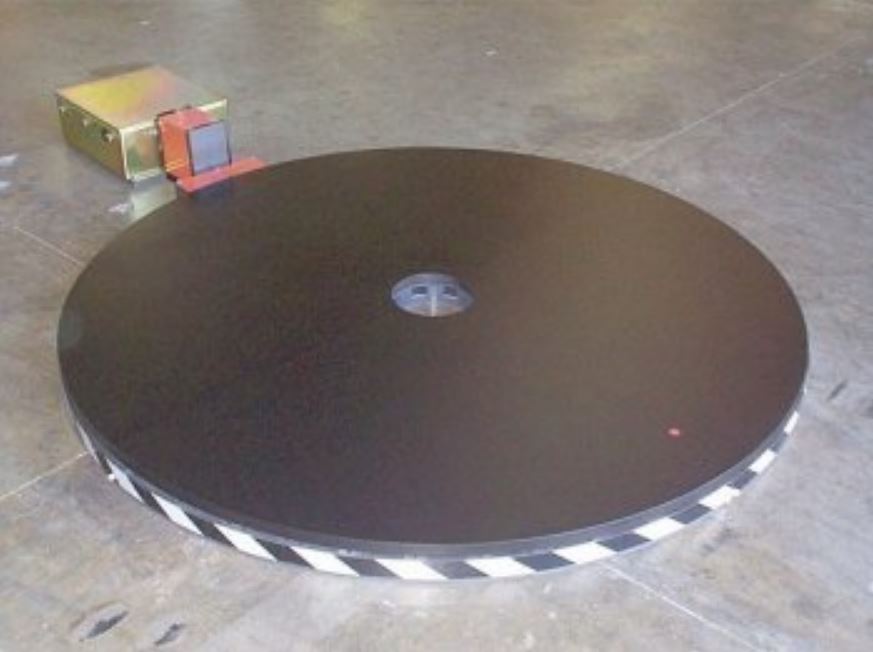

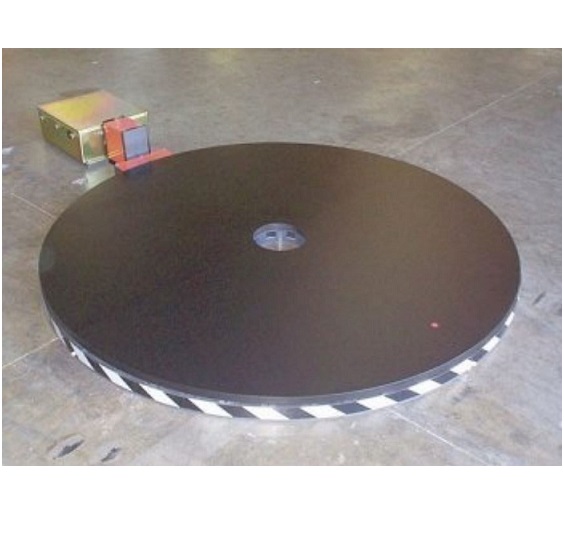

Model SM2015C

  • 2m diameter
  • 3 inches high at table top
  • 1500 pound running load
  • Same features as SM46C
