Schwarzbeck - Automotive antennas
商品說明

Automotive antennas
NMHA 6M
Nissan Specification 28401NDS02 [6]antenna set Immunity to handy transmitters and RENAULT antenna set Immunity to handy transmitters acc. 36-00-808/M (Combined Set) consisting of: NMHA 26, NMHA 28, NMHA 30, NMHA 40, NMHA
52, NMHA 75, NMHA 125, NMHA 145, NMHA 155, NMHA 165, NMHA 174,
NMHA 190, NMHA 223, NMHA 350, SBA 9113 without original biconical ele- ments, 420 NJ flat elements, Spacer 50, counterpoise for NMHA antennas and case.
VW TL 82166
2016-02
Antenna set according to Volkswagen Specification VW TL 82166:2016-02 "an- tenna set for mobile radio testing using mobile portable radio units inside the vehicle." The set consists of: NMHA 26.5, NMHA 27.5, NMHA 28.5, NMHA 29.5,
NMHA 71, NMHA 77, NMHA 83.75, NMHA 151, NMHA 166,
SBA 9113 mini version total length of the balun LH=20 cm without the small orig- inal biconical elements. 420 NJ, Spacer 50, SBA 9119 mini version total length of the balun LH=20 cm without the small original biconical elements. 422 NJ, Spac- er 30, VW metal case large with short 22 mm tube, VW metal case small with- short 22 mm tube, MSS 9630, AD Nm BNCf, AD Nm Nm, Case for all parts CCA
VW 2016

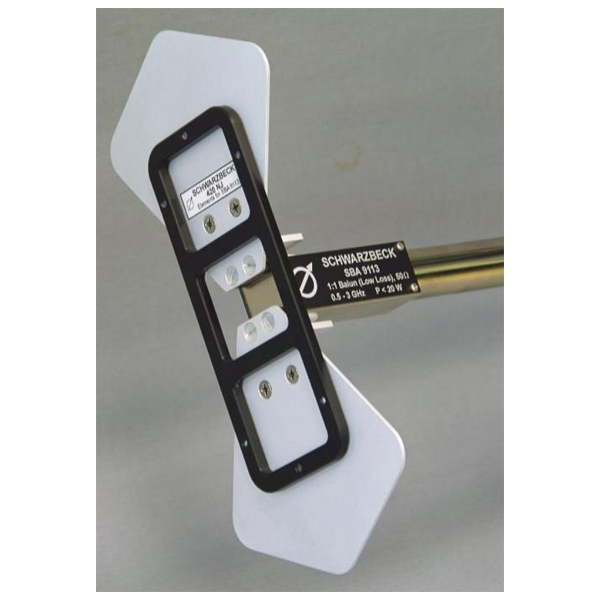

420 NJ
Elements for radiated immunity caused by handy transmitters with SBA 9113 or SBA 9113 mini version for the Ford standard RI115.
Spacer 50 for
420 NJ
Spacer for 420 NJ. Test distance 50 mm.
422 NJ
Elements for radiated immunity caused by handy transmitters for SBA 9119.
Spacer 30 for
422 NJ
Spacer for 422 NJ. Test distance 30 mm.
WAND0918
Wireless Immunity “Wand” Antenna acc. to Dell Specification „SYSTEM IMMUNITY TO WIRELESS GSM TEST REQUIREMENT” 800 MHz -2 GHz.
RS 9244
Radiating source for CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC), consist- ing of a 500 mm brass rod with 4 mm diameter and 2 aluminum angles with
N-connectors.
Comet SB14
Comet SB-14 mobile antenna for 50 MHz with PL connector.
Diamond CR6
CR-6 mobile antenna for 50 MHz with PL connector.
Diamond CR11
CR-11 mobile antenna for 26-28 MHz with PL connector.
EGG 900
Antenna for IMMUNITY TO ON-BORD TRANSMITTERS (PSA EQ/IR 05,
ISO 11452-9 B.4.2) for GSM 900, GSM 850 and PDC 800 bands (890-915 MHz)
EGG 1860
Antenna for IMMUNITY TO ON-BORD TRANSMITTERS (PSA EQ/IR 05, ISO 11452-9 B4.3.3) for GSM 1800, UMTS, GSM 1900 and PDC 1500 bands
(1710-2025 MHz).
FAN 405
Symmetrically folded antenna w. housing 380-430 MHz according to ISO 11452-9 B.4.8
FAN 450
Symmetrically folded antenna w. housing 430-470 MHz according to ISO 11452-9 B4.9
HLC 27
Helical T-antenna with housing according to ISO 11452-9 B4.5, 26.96-27.4 MHz.
HLC 146
Helical antenna with top cone & housing according to ISO 11452-9 B.4.6, 144-148 MHz.
HLC 170
Helical antenna with top cone & housing according to ISO 11452-9 B.4.7, 168-173 MHz.
PCD 2440
Antenna for IMMUNITY TO ON-BORD TRANSMITTERS (PSA EQ/IR 05,
ISO 11452-9 B.4.4) for bluetooth band (2402 – 2480 MHz)
TSA 385
Tuned sleeve antenna 373-397 MHz acc. ISO 11452-9 B.3
TSA 400
Tuned sleeve antenna 387-419 MHz acc. ISO 11452-9 B.3
TSA 415
Tuned sleeve antenna 407-423 MHz acc. ISO 11452-9 B.3
TSA 430
Tuned sleeve antenna for Toyota TSC7006G or ISO 11452-9 B.3, 425-435 MHz
TSA 455
Tuned sleeve antenna 437-470 MHz acc. ISO 11452-9 B.3
TSA 835
Tuned sleeve antenna for Toyota TSC7006G, VSWR = 1.5 or better at 835 MHz.
TSA 880
Tuned sleeve antenna 806-958 MHz acc. ISO 11452-9 B.3
TSA 900
Tuned sleeve antenna for Toyota TSC7006G, VSWR = 1.5 or better at 900 MHz.
TSA 1270
Tuned sleeve antenna for Toyota TSC7006G, VSWR = 1.5 or better at 1270 MHz.
TSA 1440
Tuned sleeve antenna 1440-1453 MHz acc. ISO 11452-9 B.3
TSA 1750
Tuned sleeve antenna 1.14-2.0 GHz acc. ISO 11452-9 B.3
TSA 1950
Tuned sleeve antenna for Toyota TSC7006G, VSWR = 1.5 or better at 1950 MHz.

Passive Rod Antenna

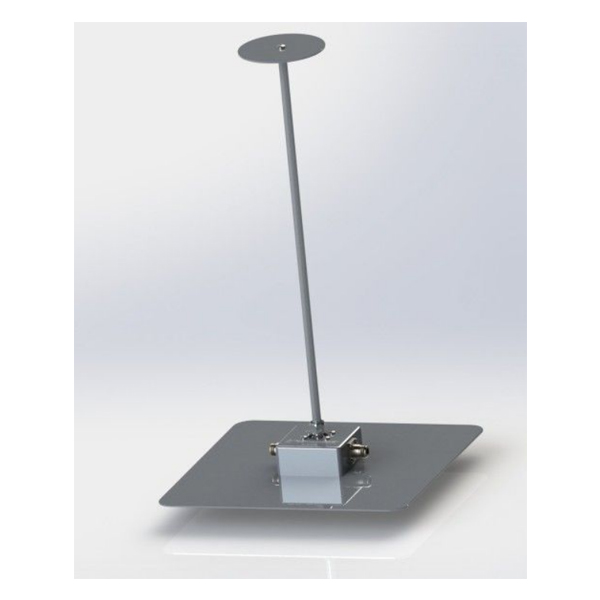

VPMP 9241
Monopole acc. to CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC), passive, 2 N-connectors, element fixture for rod, rod, aluminum housing and groundplane.
Opt. TLD
9241
Top loading disc for VPMP 9241 diameter < 12 cm.
VPMP 9242
Vertical passive rod antenna, 10 – 40 MHz, possible rods: FBAB 9177, FBAL 9178, BBA 9106, BBAL 9136 (have to be ordered extra)
GP f. 9242
Accessory for VPMP 9242: Aluminium groundplane 0.6 x 0.6 m
商品規格

 TSA Antennas

 420NJ

 VPMP 9241
