Schwarzbeck - EMI 線路阻抗穩定網路/EMI LISN : V-LISN / ISN / T-Networks
商品說明
Type
Topology
Impedance
Current max.
Paths
Options
CISPR 16-1-2 socket
NSLK 8117
V-LISN
(50 µH + 5 Ω) || 50 Ω
2 x 10 A
2

NSLK 8127
V-LISN
(50 µH + 5 Ω) || 50 Ω
2 x 16 A
2
RC, PLC
NSLK 8126
V-LISN
(50 µH + 5 Ω) || 50 Ω
2 x 16 A Schuko
4 x 16 A CEKON
4
RC
NSLK 8128
V-LISN
(50 µH + 5 Ω) || 50 Ω
2 x 16 A Schuko and
4 x 32 A CEKON
4
RC
NSLK 8163
V-LISN
(50 µH + 5 Ω) || 50 Ω
4 x 64 A CEKON
4
RC
CISPR 16-1-2 Wing Terminals
NNLK 8121
V-LISN
(50 µH + 5 Ω) || 50 Ω
4 x 50 (100) A
 4
RC, Hochstrom, 400/700V, Lüfter
NNLK 8122
V-LISN
(50 µH + 5 Ω) || 50 Ω
2 x 50 A
 2

NNLK 8129
V-LISN
50 µH || 50 Ω
4 x 200 (300) A
 4
RC, 400/700 V, Lüfter
NNLK 8129-2 HV
V-LISN
50 µH || 50 Ω
2 x 200 (300) A
2
RC,TC
NNLK 8130
V-LISN
50 µH || 50 Ω
4 x 400 (500) A
 4
RC
NNLK 8140
V-LISN
50 µH || 50 Ω
1 x 800 (1000) A
single

Automotive
NNHV 8123
V-LISN
5µH || 50 Ω
70 (100) A
single

NNHV 8123-200
V-LISN
5µH || 50 Ω
200 A
single

NNHV 8123-400
V-LISN
5µH || 50 Ω
400 A
single

NNBM 8124
V-LISN
(5µH + 1 Ω) || 50 Ω
70 (100) A
single
N-connector
NNBM 8124-200
V-LISN
(5µH + 1 Ω) || 50 Ω
200 A
single
N-connector
NNBM 8124-400
V-LISN
(5µH + 1 Ω) || 50 Ω
400 A
single
N-connector
NNBM 8126 A 890
V-LISN
5 µH || 50 Ω
70 (100) A
single
DO-160
BAN 8508


8 A (DC)
single

BAN 8530


30 A (DC)
single

MIL
NNBL 8225
V-LISN
(50 µH + 5 Ω) || 50 Ω
20 A
single

NNBL 8226
V-LISN
(50 µH + 5 Ω) || 50 Ω
70 (100) A
single

NNBL 8226-HV
V-LISN
(50 µH + 5 Ω) || 50 Ω
70 (100) A
single

NNBL 8226-2
V-LISN
(50 µH + 5 Ω) || 50 Ω
70 (100) A
2

NNBL 8229-HV
V-LISN
(50 µH + 5 Ω) || 50 Ω
200 A
single

NNBL 8230
V-LISN
(50 µH + 5 Ω) || 50 Ω
300 A
single

NNBL 8240
V-LISN
(50 µH + 5 Ω) || 50 Ω
800 (1000) A
single

T-ISN
NTFM 8131
T-ISN
150 Ω ± 10%
3 A (AC)
 2

NTFM 8158
T-ISN
150 Ω ± 20 Ω
600 mA DC (pair)
 2

CAT5 8158
T-ISN
150 Ω ± 20 Ω
600 mA DC (pair)
 2

CAT3 8158
T-ISN
150 Ω ± 20 Ω
600 mA DC (pair)
 2

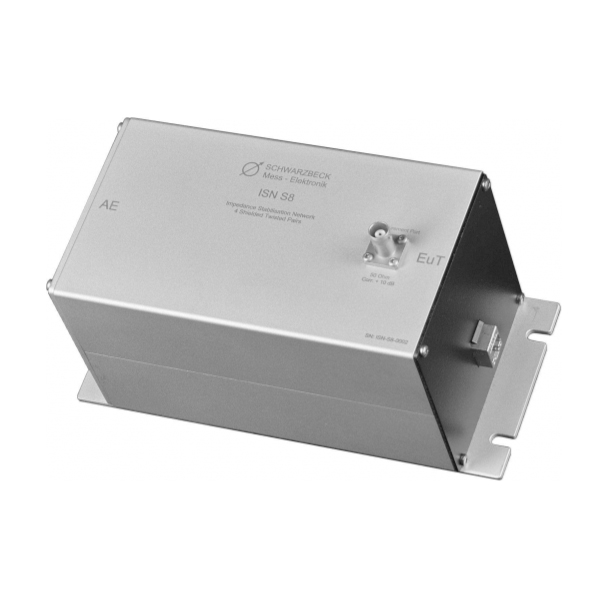

ISN S8
T-ISN
150 Ω ±20 Ω
150 Ω + 60 Ω /-45 Ω
1 A (DC)
 8

ISN S1
T-ISN
150 Ω ±20 Ω
150 Ω + 60 Ω /-45 Ω
1 A (DC)
single

Special - LISN
Pilot ISN

150 Ω ±20 Ω
1.4 A DC
2

ECSS LISN1

(1.5 µH) || 50 Ω
10 A
2

ECSS LISN 2

(2 µH) || 50 Ω
10 A
2

ECSS LISN 2 - 75A

(2 µH) || 50 Ω
75 A
2

ECSS LISN 3

(0.7 µH) || 50 Ω
10 A
2

NPLC 8500
V-LISN
1 Ω
16 A
single

PVDC 8300
PV-LISN
Universal
150 Ω common
100 Ω differental
50 A (100 A with opt. fans)
 2
Fans
PVDC 8301
PV-LISN
Universal
150 Ω common
100 Ω differental
200 A
 2

TEMP 8400
Tempest-
V-LISN
1.4 kΩ
16 A
 2
TEMP 8401
商品規格

 NNBM8124

 NTFM 8131

 ISN_S8
