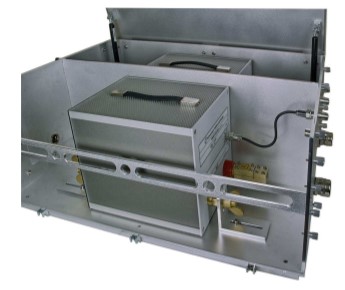

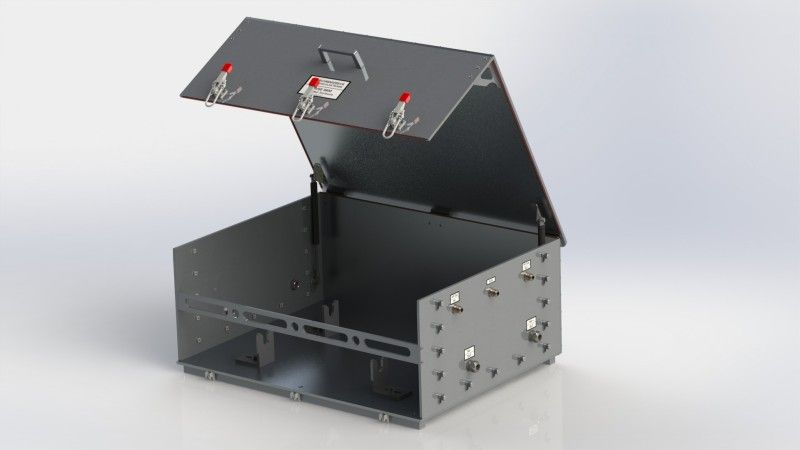

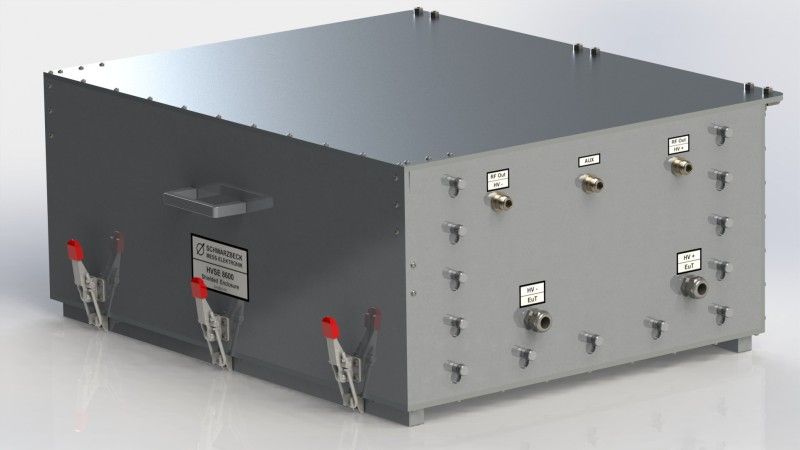

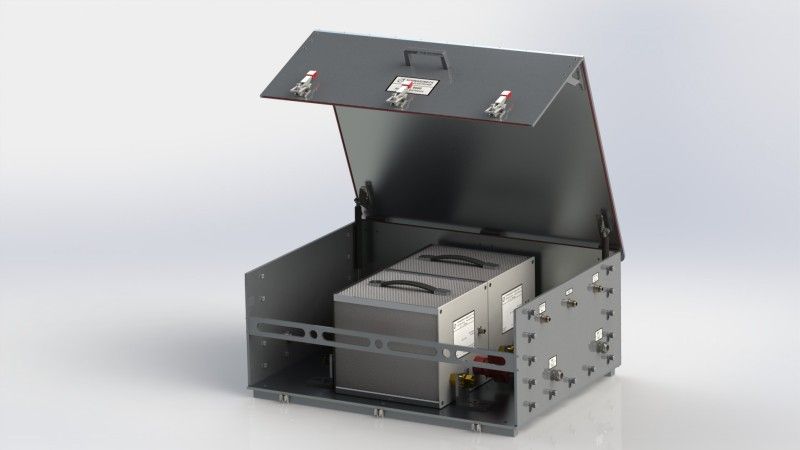

HVSE 8600 / HVSE 8601 Shielded Enclosure for Automotive LISN

The HVSE 8600 / HVSE 8601 Shielded Enclosure (Shielding Box) was designed to increase the shielding effectiveness of automotive LISN significantly, which is neccessary for measurements of electric- or hybrid vehicles.

Material: Aluminium

Shielding Effectiveness: typ. > 100 dB

HVSE 8600 is suitable for the following LISN types:

NNHV 8123,
NNHV 8123-200,
NNHV 8123-400,
NNHV 8123-400R

HVSE 8601 is suitable for NNHV 8123-800.

Further Information about the application of the shielded enclosure can be found in CISPR 25 Ed. 4 or e.g. in the manufacturer specific standard BMW GS 95025-1.
