RF AMPLIFIERS

商品說明

TBWA2/20dB, TBWA2/40dB

EMC probe amplifier
General purpose wideband RF amplifier

TBHDR1

general purpose gain block
pre-amplifier in applications with low noise and high IP3 requirements
pre-amplifier for spectrum analyzers, especially in EMC pre-compliance test applications
Loop antenna amplifier

TBDA1/14dB, TBDA1/28dB

RF driver amplifier
General purpose wideband RF amplifier

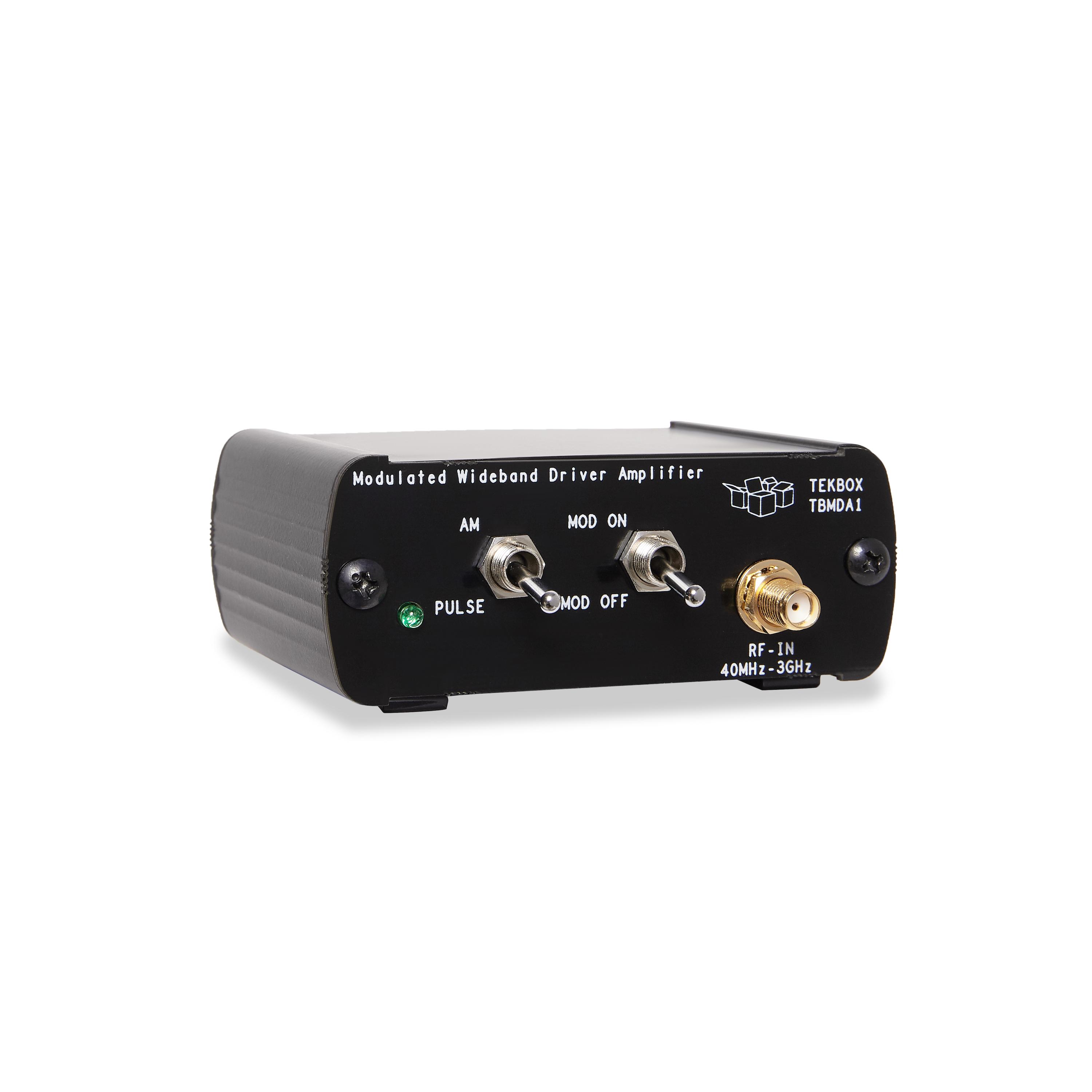

TBMDA1

Pre-compliance RF immunity testing, driving Tekbox EMC probes or TEM cells
RF driver amplifier
General purpose wideband RF amplifier

TBMDA2

General-purpose gain block
Signal source for immunity testing, driving near field probes
Signal source for immunity testing, driving TEM Cells

TBMDA3

General-purpose power amplifier
Signal source for immunity testing, driving near field probes
Signal source for immunity testing, driving TEM Cells

TBMDA4B

General-purpose power amplifier
Signal source for immunity testing, driving near field probes
Signal source for immunity testing, driving TEM Cells

TBMDA5

General-purpose wideband RF power amplifier
Wideband RF power amplifier for conducted immunity testing driving CDNs or BCI-probes
Wideband RF power amplifier for radiated immunity testing, driving near field probes
Wideband RF power amplifier for radiated immunity testing, driving TEM Cells

Part Nr.	Frequency range [MHz]	Gain [dB] typ.	N.F. [dB] typ	Max. pwr. @ P1dB [dBm]	IP3 out [dBm]	Max. input pwr. rating [dBm]	Supply voltage [V]	Supply current [mA]	Application
TBWA2/20dB	1.5 – 6000	20	4.5	20	35	10	5	110	EMC probe amplifier
TBWA2/40dB	2.5 – 6000	40	4.5	20	35	-10	5	210	EMC probe amplifier
TBHDR1	0.03 – 1500	24	2.7	19	38	10	5	100	Spectrum Analyser pre amplifier
TBDA1/14	20 – 3000	14	4	22	40	20	5	115	Wideband driver amplifier
TBDA1/28	20 – 3000	28	4	22	40	6	5	225	Wideband driver amplifier
TBMDA1	20 – 3000	20	4	22	40	9	5	235	RF immunity testing
TBMDA2	10 – 1500	40	4	27	40	-8	5	700	RF immunity testing
TBMDA3	10 – 1000	40	9	37	40	0	110-240	20 W	radiated immunity testing
TBMDA4B	0.1 – 75	50	7.2	37	40	0	110-240	20 W	radiated immunity testing
TBMDA5	0.1 – 400	38	6.1	34	43	0	110-240	20 W	conducted immunity testing
