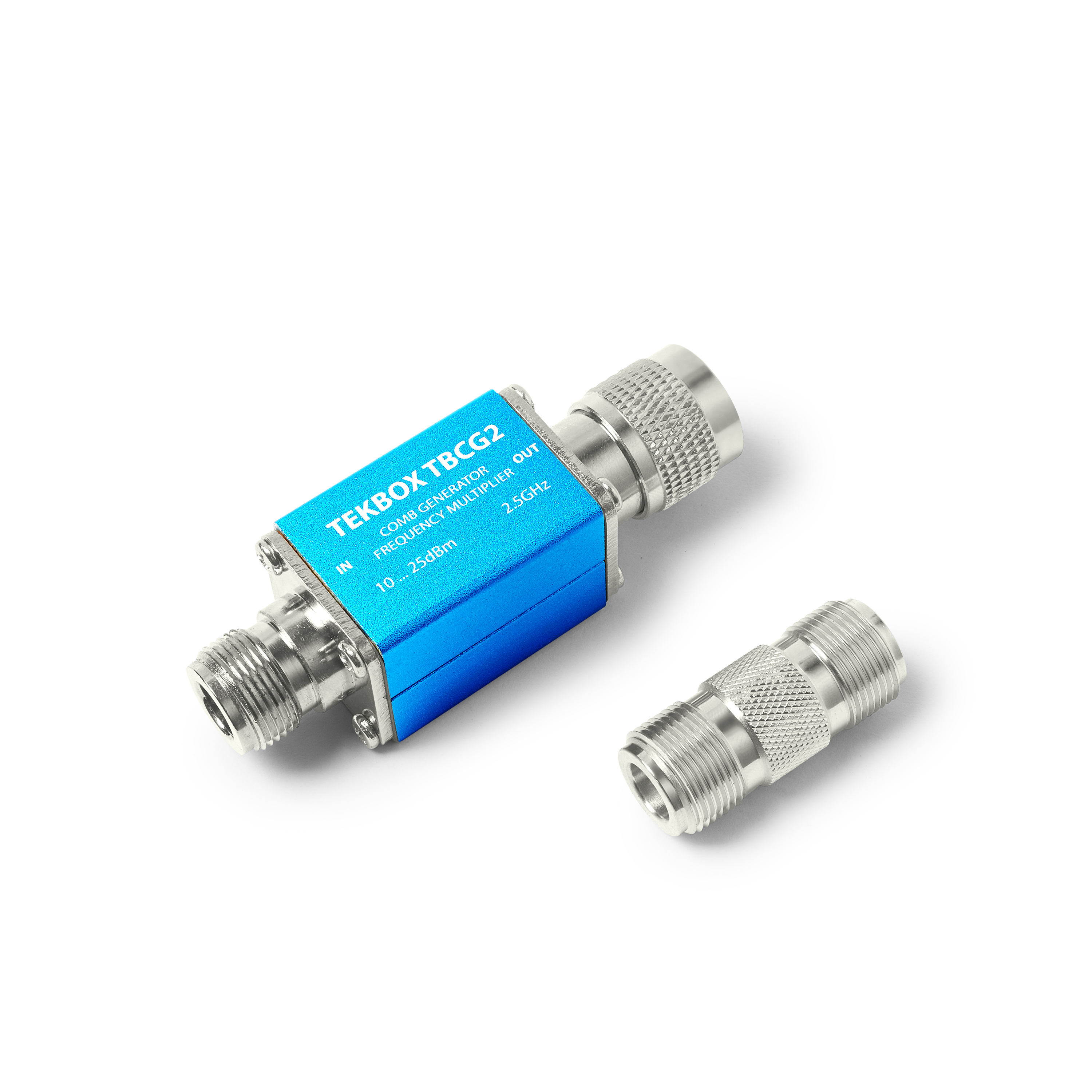

TBCG2 COMB GENERATOR/FREQUENCY MULTIPLIER
The TBCG2 is a passive, step recovery diode based comb generator/frequency multiplier. It is optimized for moderate drive power and spectrum flatness in the frequency range 1 MHz to 2.5GHz.
商品說明

The TBCG2 is a passive, step recovery diode based comb generator/frequency multiplier. It is optimized for moderate drive power and spectrum flatness in the frequency range 1 MHz to 2.5GHz.

The recommended drive power is +10 dBm to +20 dBm

The frequency range for the drive signal is 1 MHz to 350MHz

商品規格

Input Power: +10 dBm to +20 dBm; 25 dBm max.
Input Frequency: 1 MHz to 350 MHz
Comb spectrum: 1 MHz – 2.5 HGz
Input connector: N female
Output connector: N male
Dimensions: 81 mm x 26 mm x 26 mm
Weight: 96 g

DOCUMENTATION
DOWNLOAD

TBCG2 manual
