SDS1152CML+ (150 MHz)
SDS1102CML+ (100 MHz)
SDS1072CML+ (70 MHz)

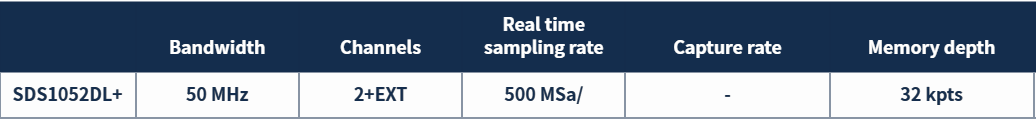

SDS1052DL+ (50 MHz)

SDS1000DL+ Series Digital Storage Oscilloscopes

• 50 MHz bandwidth models
• Real-time sampling rate up to 500 MSa/s, Equivalent-time sampling rate up to 50 GSa/s
• Memory Depth up to 32 kpts
• Trigger types: Edge, Pulse, Video, Slope, Alternate
• Waveform math functions:+, -, *, /, FFT
• 6 digit frequency counter

Product Overview

SIGLENT SDS1000DL+ Digital Storage Oscilloscopes are dual-channel, 50 MHz oscilloscopes. The SDS1000DL+ includes a 30 kpts memory depth that helps to ensure accurate waveform resolution and to capture long signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1000DL+ oscilloscope supports 32 parameters measurements and common mathematical operations to speed up complex/repetitive measurements.

Key Features

• Supports multi-language display and embedded help
• Screensaver from 1 minute to 5 hours
• Digital filter and waveform recorder function
• Shortcut storage function key
• 7-inch TFT-LCD display with 800 * 480 resolution
• Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

SDS1000CML+ Series Digital Storage Oscilloscopes

• 100, 150 MHz bandwidth models
• Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
• Memory Depth up to 2 Mpts
• Trigger types: Edge, Pulse, Video, Slope, Alternate
• Waveform math functions:+, -, *, /, and FFT
• 6 digit frequency counter

Product Overview

SIGLENT’s SDS1000CML+ Digital Oscilloscopes are dual-channel oscilloscopes, available in 100, and 150 MHz bandwidth models. The SDS1000CML+ includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, SDS1000CML+ digital oscilloscopes support 32 parameters measurements and common mathematical operations to speed up complex/repetitive measurements.

Key Features

• Supports multi-language display and embedded help
• Screensaver from 1 minute to 5 hours
• Digital filter and waveform recorder function
• Shortcut storage function key
• 7-inch TFT-LCD display with 800 * 480 resolution
• Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

SDS1152CML+ (150 MHz)
SDS1102CML+ (100 MHz)
SDS1072CML+ (70 MHz)
SDS1052DL+ (50 MHz)
