SPD3303X / SPD3303X-E Series Programmable DC Power Supplies

• 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
• 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
• Timing function provides programmed output steps
• 4.3 inch true color TFT- LCD 480 x 272 display
• 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)

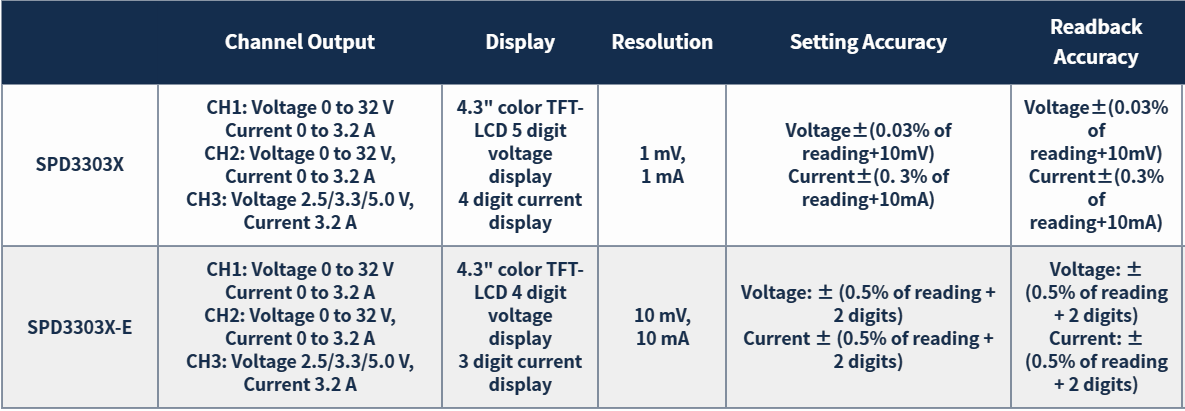

SPD3303X-E (10 mv, 10 mA)
SPD3303X (1 mv, 1 mA)

Product Overview

Siglent’s SPD3303X & SPD3303X-E Series Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays. The SPD3000X Series has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.

Key Features

• 100/120/220/230 V compatible design to meet the needs of different power grids
• Intelligent temperature-controlled fan effectively reduces fan noise
• Clear graphical interface, with waveform display function
• Five internal groups of system parameter save/recall, supports data storage space expansion
• Free PC software: Easypower. Also supports remote programming and includes a LabView driver
