SDM3055 5 ½ Digits Dual-Display Digital Multimeters

• Real 5½ digits readings resolution ( 240, 000 counts )
• Up to 150 rdgs/s measurement speed
• True-RMS AC Voltage and AC Current measuring
• 1 Gb Nand flash size, Mass storage configuration files and data files
• Optional Scanner for multipoint measurements (-SC part number)

Product Overview

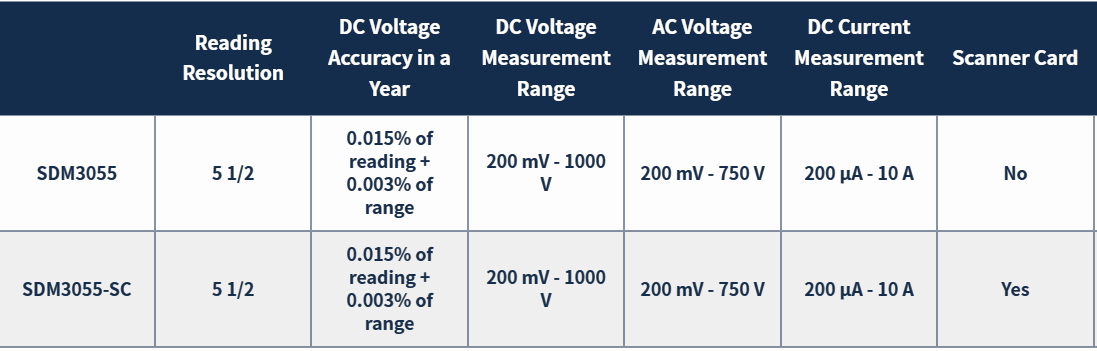

The SDM3055 digital multimeter and SDM3055-SC digital multimeter are designed with 5 ½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.

The SIGLENT SDM3055-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP (RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

NOTE: The scanner is included on new SDM3055-SC products only. It cannot be added to SDM3055 instruments at a later time.

Key Features

• Built-in cold terminal compensation for thermocouple temperature measurements
• With easy, convenient and flexible PC software: EasyDMM
• Standard interfaces: USB Host, LAN ( Optional Accessories USB-GPIB Adapter )
• Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters
