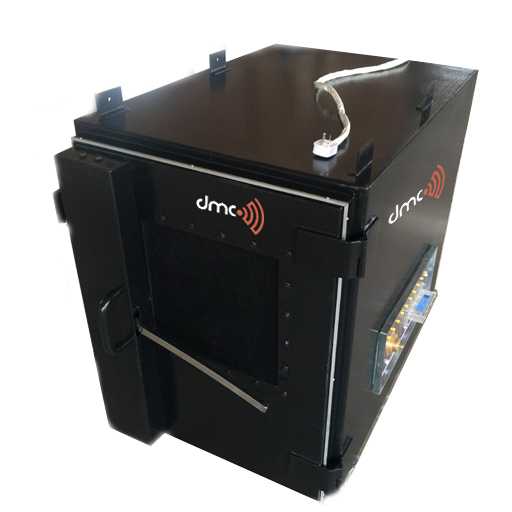

RF Shielded Enclosure – OTA Testing Sub 6GHz

The DMC-OTA-S6 series RF shielded enclosures are cost-effective for over-the-air (OTA) testing at 6GHz. Our advanced shielding technology provides high isolation level make them suitable for OTA testing.

To minimise path loss and to get best results, these shield boxes can include racking options to incorporate instruments directly at the enclosure.

• Frequency 700MHz to 6GHz
• Shielding effectiveness > 70dB
• 4 DUTs test in parallel
• High efficient acquisition algorithm for processing the TRP with multiple test probes, instead of adjusting the antenna position by products. Achieve ±1dB accuracy
• Support TX, RSSI, BER, BLER，FER, EVM, RSE and other test indicators
• Wireless communication with DUT. Avoid the USB impact to the antenna frequency response
• Manual or RS-232C/remote operation, suitable for automation line;
• Input AC power: 100-240V AC 50Hz.
