SHS800X Series Handheld Oscilloscope

• Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
• 100 MHz or 200 MHz bandwidth models
• Sampling rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
• Record length up to 12 Mpts
• Waveform recording up to 22 hours
• IP51 dust/water resistance certified

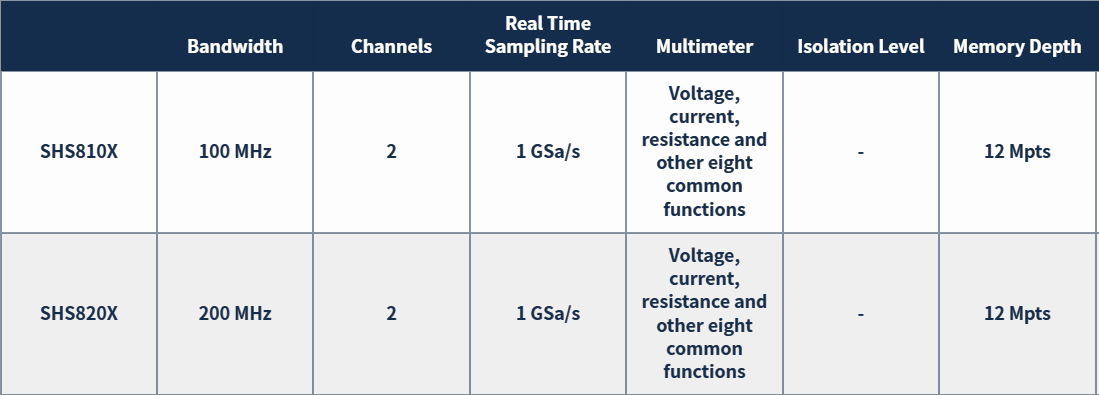

SHS820X (200 MHz)
SHS810X (100 MHz)

Key Features

• Intelligent triggers: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
• 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
• 1 Mpts FFT: Support Peaks and Markers
• 5.6-inch TFT-LCD display with 640 * 480 resolution
• UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
