SHS1000X
SHS1202X (200 MHz)
SHS1102X (100 MHz)
商品說明

SHS1000X Series Handheld Oscilloscope

  • Isolation voltage: CATIII 600 Vrms, CATII 1000 Vrms
  • Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger, and multimeter functions into a convenient and portable design
  • 100 MHz or 200 MHz bandwidth models
  • Sample rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
  • Record length up to 12 Mpts.
  • Hardware-based true RMS multimeter
  • IP51 dust/water resistance certified

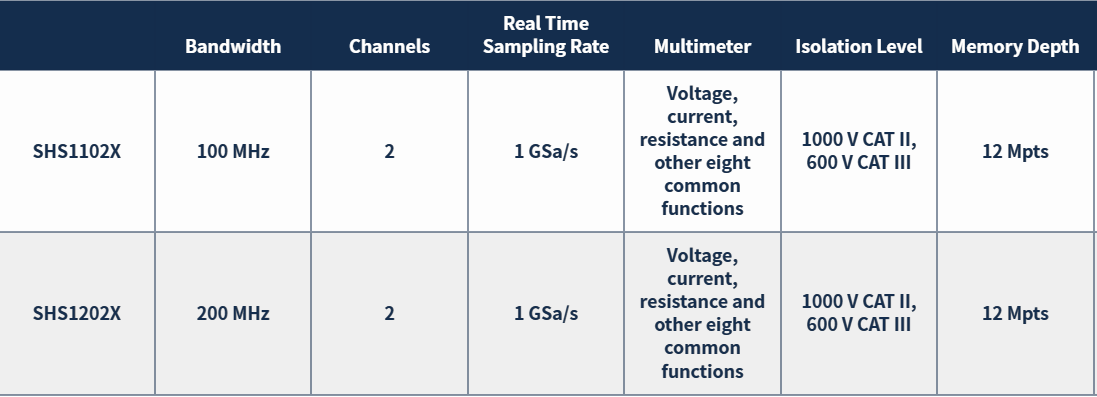

SHS1202X (200 MHz)
SHS1102X (100 MHz)

Key Features

  • Siglent SPO technology
    • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 12 Mpts
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test
  • 3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions
  • 5.6-inch TFT-LCD display with 640 * 480 resolution
