SDG2000X Series Function/Arbitrary Waveform Generators

• Dual-channel, 120 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
• High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
• Innovative TrueArb technology supports user-defined waveforms from 8 to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
• Large Touch Screen Display
• Easily combine waveforms through a single output, including noise and arbitrary waveforms

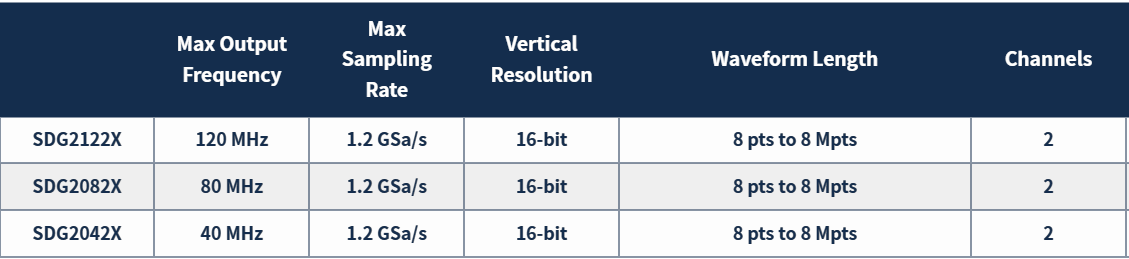

SDG2122X (120 MHz)
SDG2082X (80 MHz)
SDG2042X (40 MHz)

Product Overview

SIGLENT’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120 MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X waveform generators can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Key Features

• Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely
  high precision in pulse width and rise/fall times adjustment
• Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
• Sweep and Burst function, Harmonics mode supported
• High precision Frequency Counter

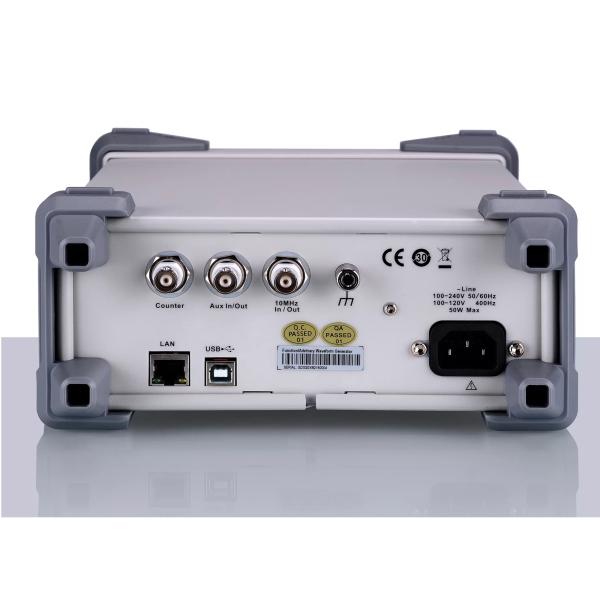

• Standard interfaces: USB Device, USB Host, LAN (VXI-11), and GPIB (optional)

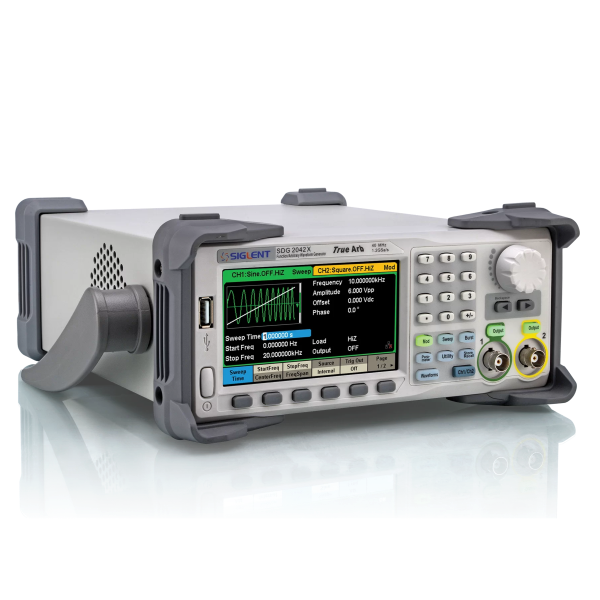

• 4.3” touchscreen display for easier operation
