SDG800 Series Function/Arbitrary Waveform Generators

• Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution
• Single channel output, 5 standard waveforms, 46 built-in arbitrary waveforms (including DC)
• Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, and burst

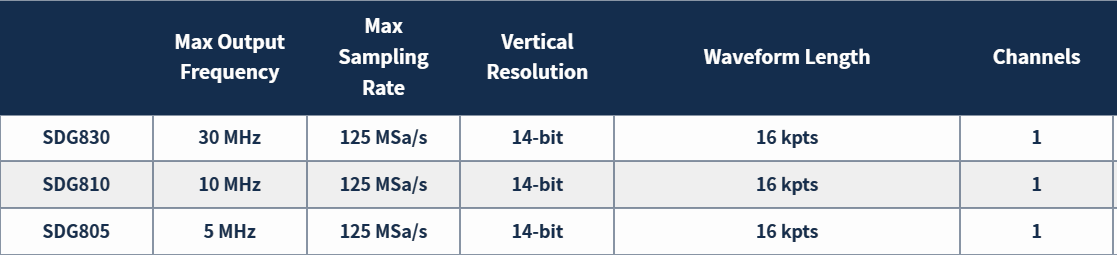

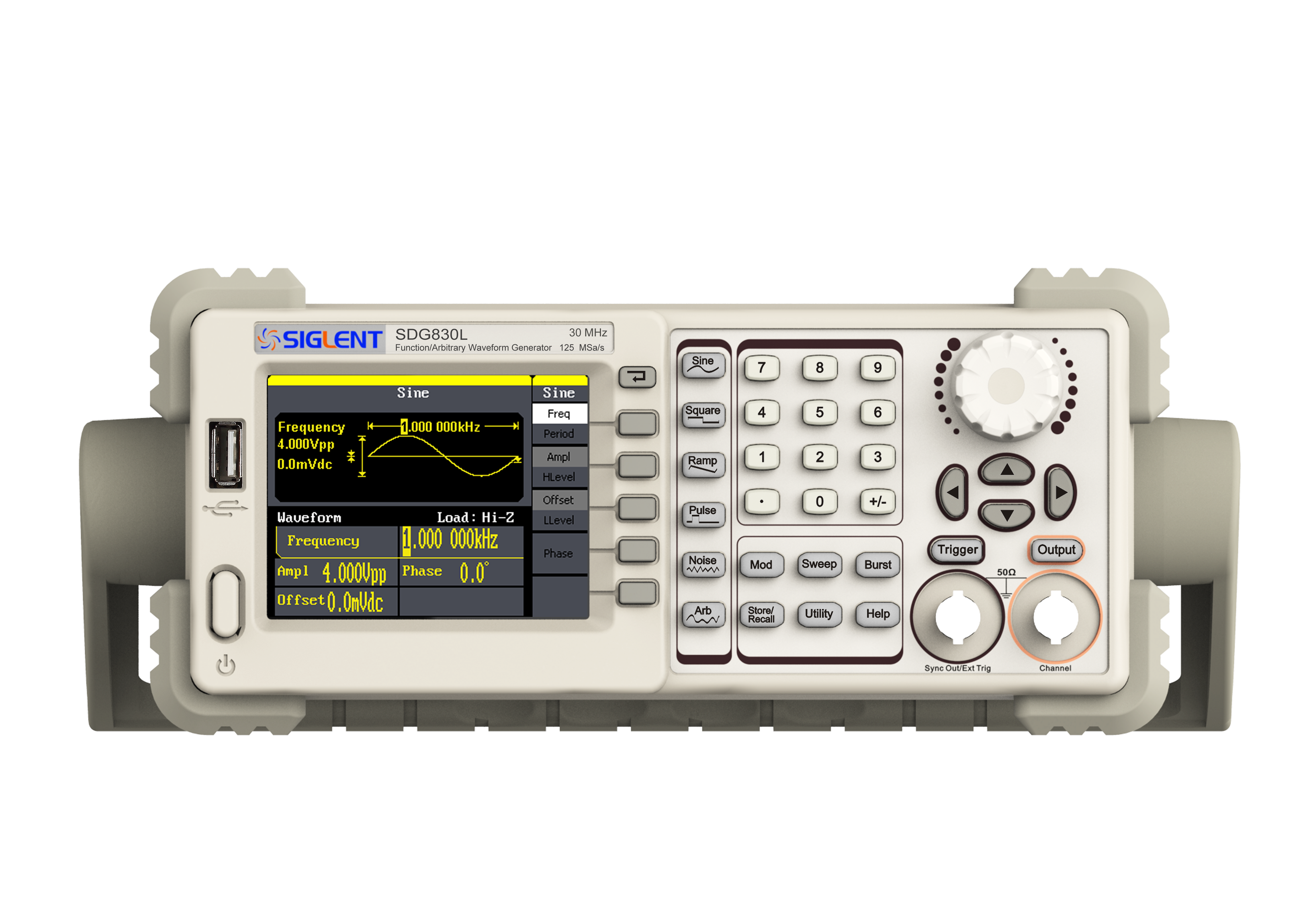

SDG830

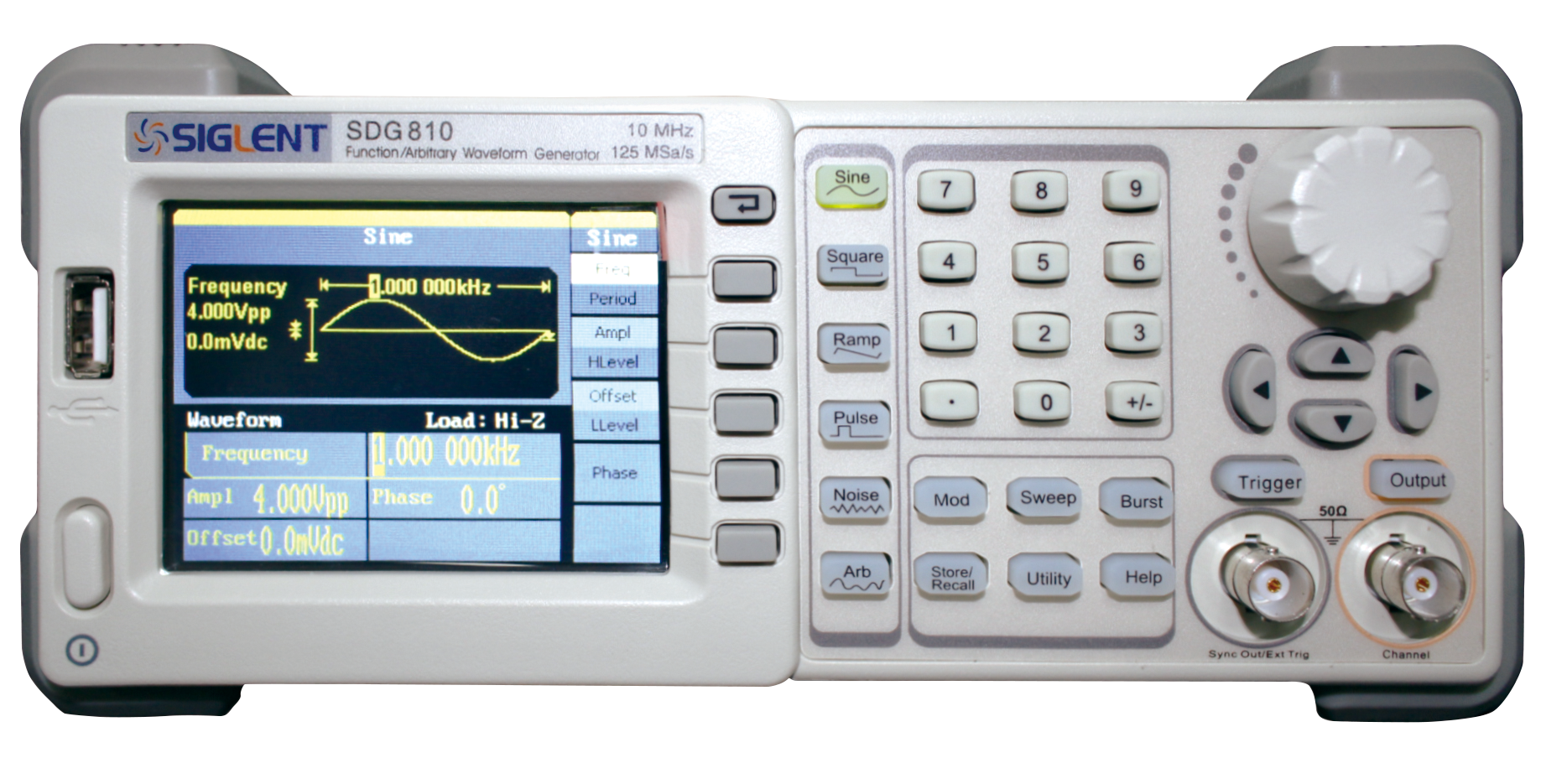

SDG810

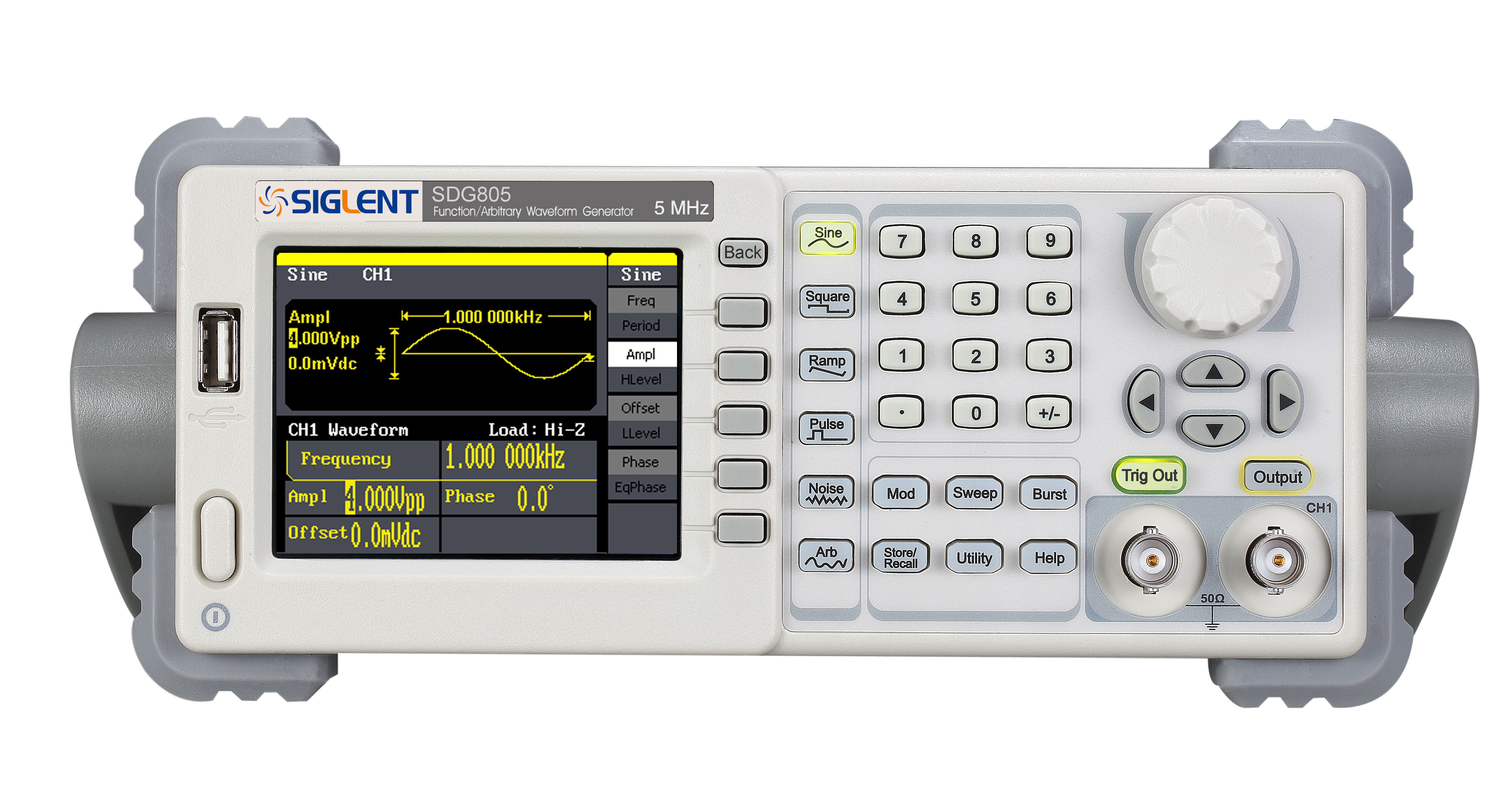

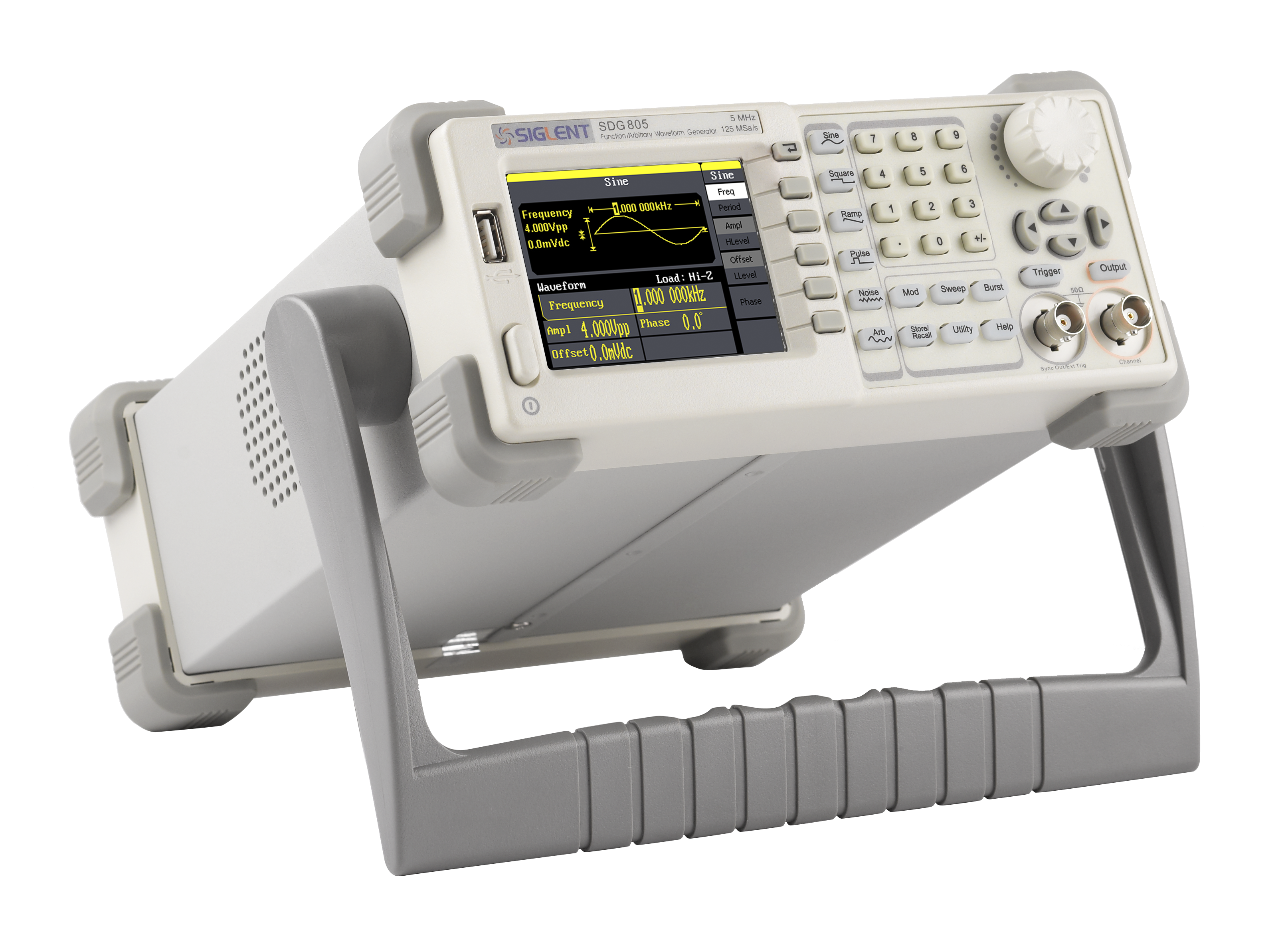

SDG805

Product Overview

SIGLENT’s SDG800 Arbitrary Waveform Generators output waveform functions up to 5 MHz (pulse), 10 MHz (square), 30 MHz (sine) and have a sampling rate of 125 MSa/s. SDG800 signal generators are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile function generator than other similar DDS designs.

Key Features

• Innovative EasyPulse technology, can output pulses with low jitter and quick rising/falling edges

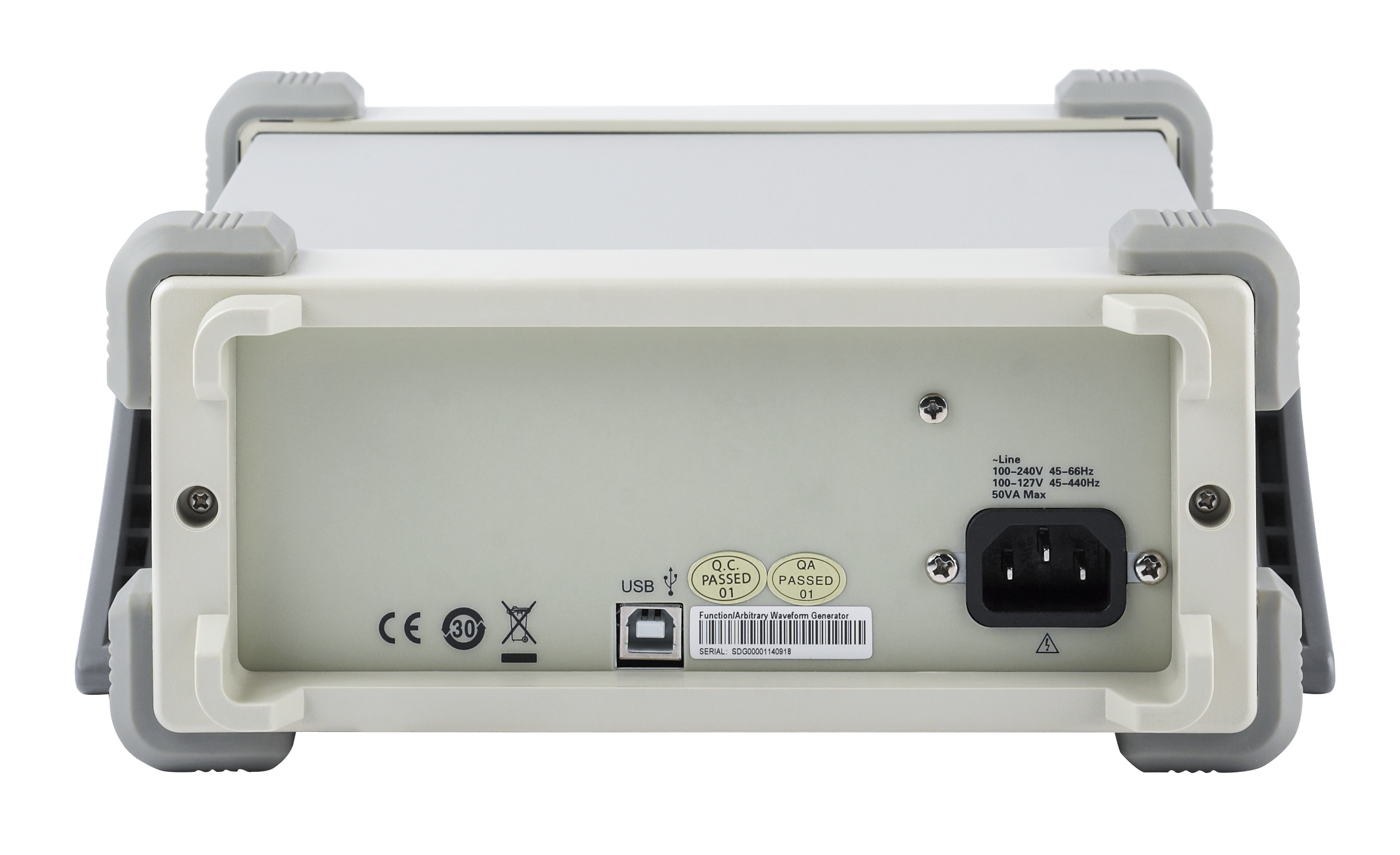

• Standard interfaces: USB Device, USB Host, supports U-Disk storage
• 10 non-volatile storage spaces for user’s arbitrary waveforms
• Can be seamlessly connected to SIGLENT Digital Storage Oscilloscopes
• Includes EasyWave, the powerful arbitrary waveform editing software
