SSG6000A Series Microwave Analog Signal Generator

• Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
• Level setting range: -130 dBm ~ 24 dBm
• Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
• Level error ≤ 0.7 dB (typ.)
• Standard AM modulation
• Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
• Pulse modulation and pulse train generator (option)

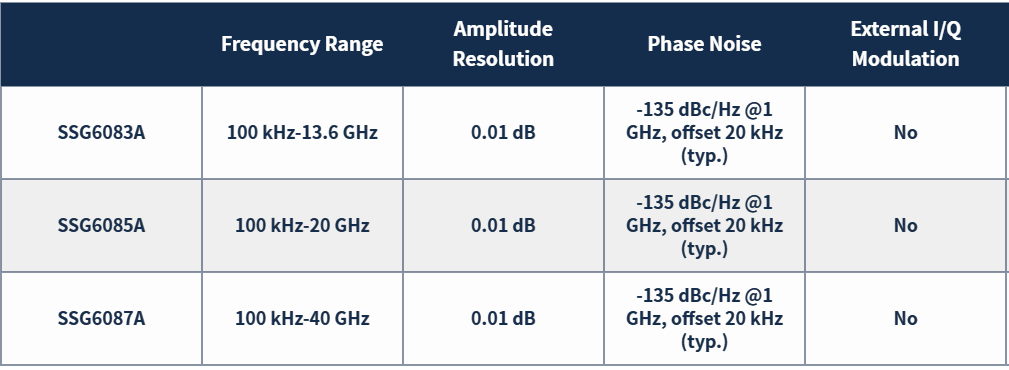

SSG6087A (CW MODE 100 kHz ~ 40 GHz)
SSG6085A (CW MODE 100 kHz ~ 20 GHz)
SSG6083A (CW MODE 100 kHz ~ 13.6 GHz)

Key Features

• Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
• Level setting range: -130 dBm ~ 24 dBm
• Excellent Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
• Very low sub harmonic: < –80 dBc
• Level error ≤ 0.7 dB (typ.)
• Standard AM modulation with internal, external or Int+Ext source
• Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
• Pulse modulation on/off ration > 80 dBc (typ.) and the rise/fall time < 15 ns (typ.) (option)
• Pulse train generator has pulse width of 20 ns ~ 300 s and as many as 2047 different pulses (option)
• Web browser remote control on PC and mobile terminals
• 5 inch TFT capacitive touch screen, mouse and keyboard supported

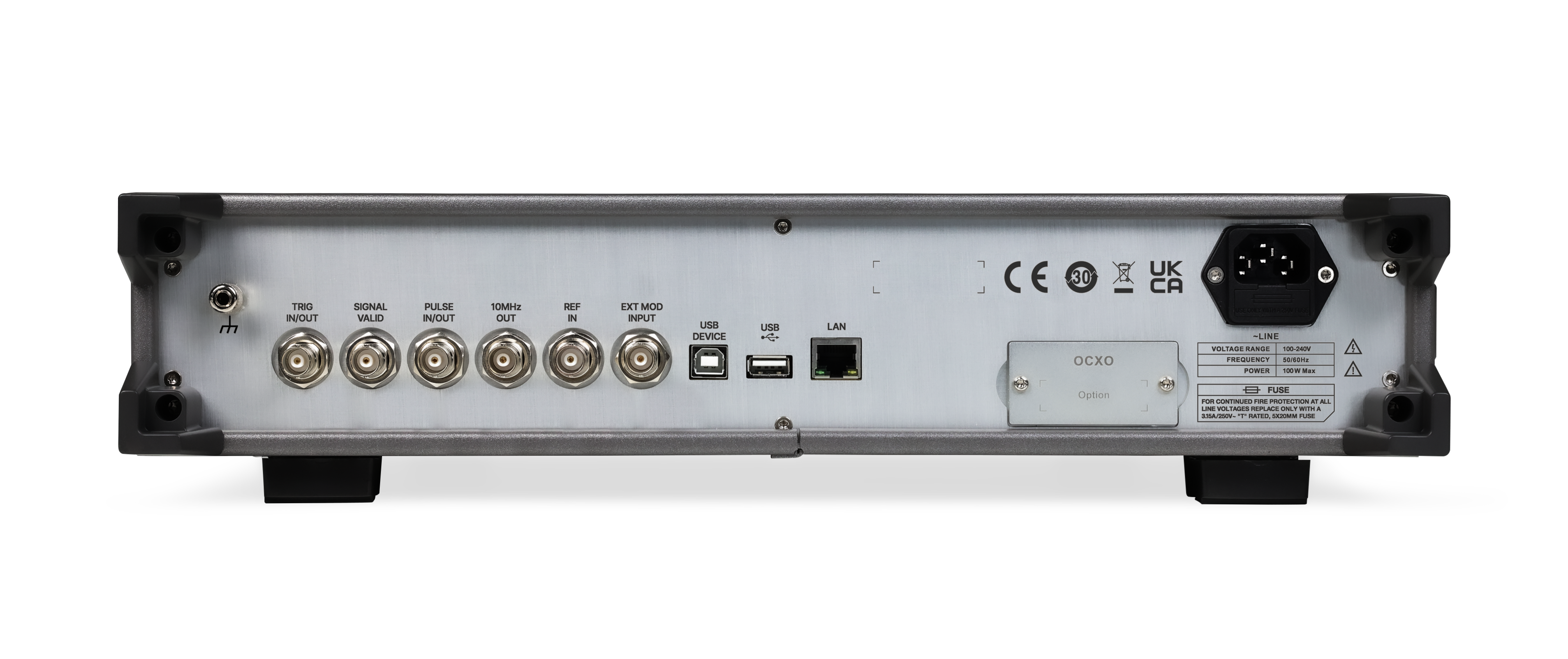

• Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
