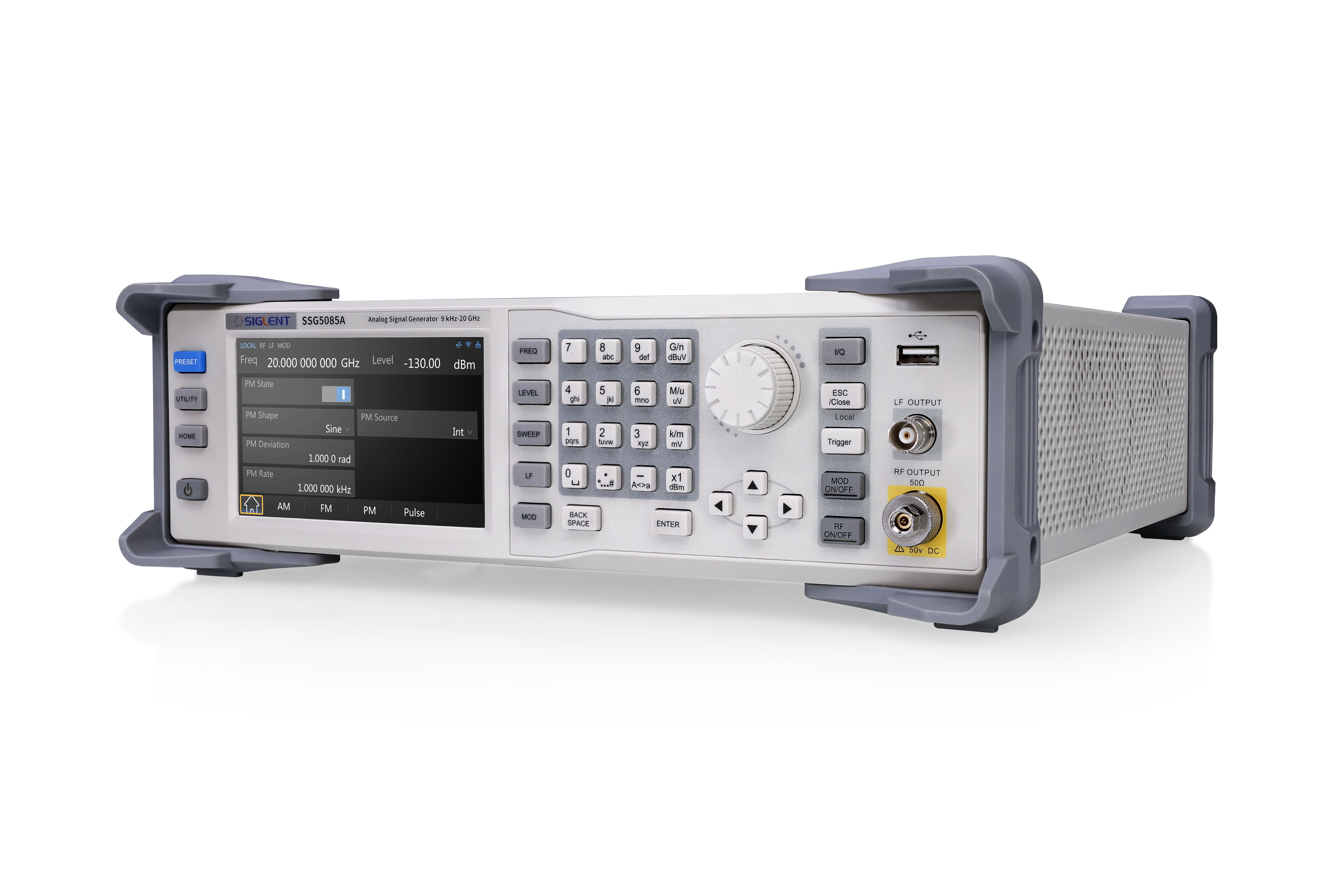

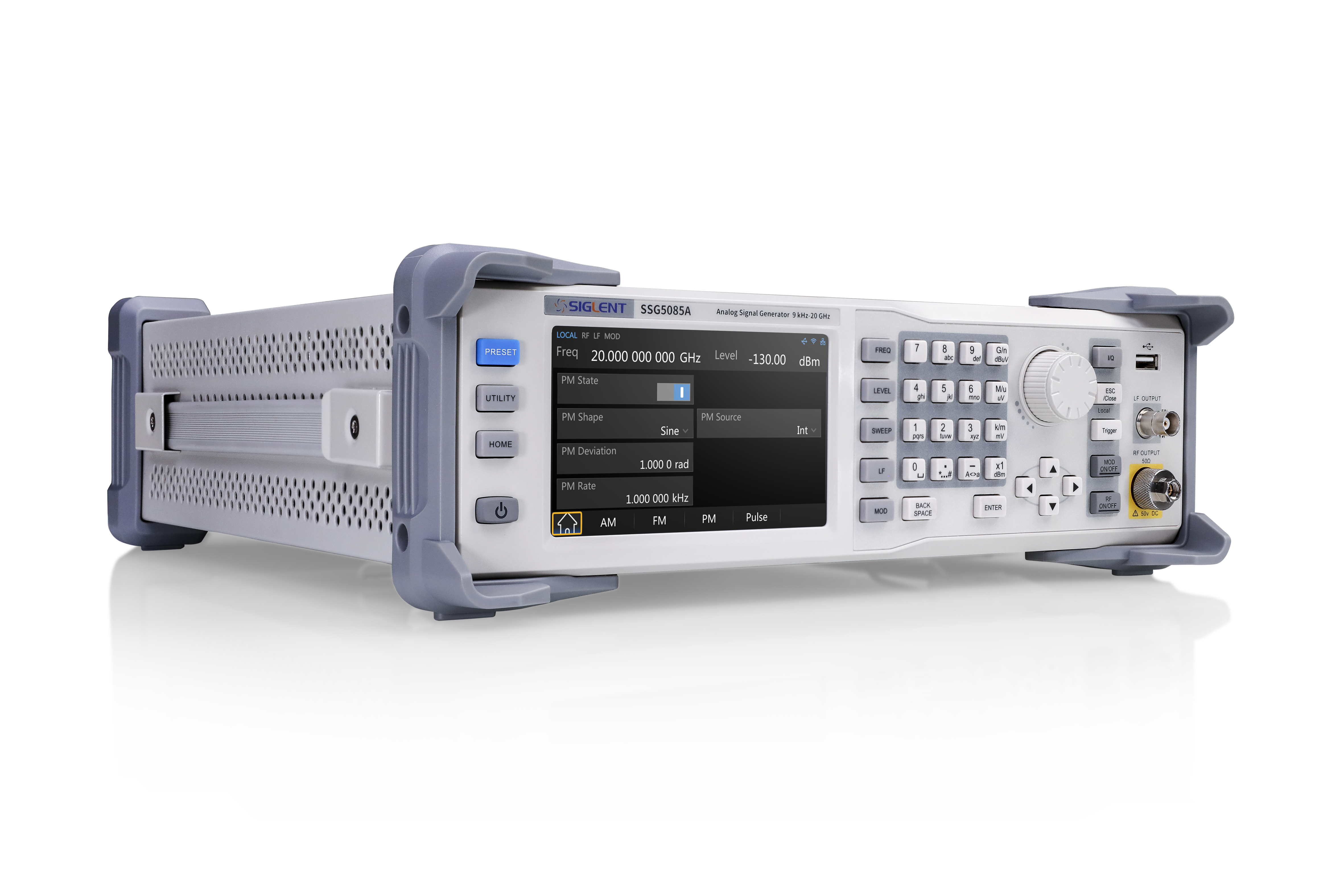

SSG5000A Series RF Signal Generator
- Frequency up to 13.6 GHz / 20 GHz
- 0.001 Hz frequency setting resolution
- Level setting range: -130 dBm ~ 25 dBm
- Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
- Level error ≤ 0.7 dB (typ.)
- Standard AM & FM & PM & pulse modulation
- Single pulse, double pulse and pulse train generator (option)

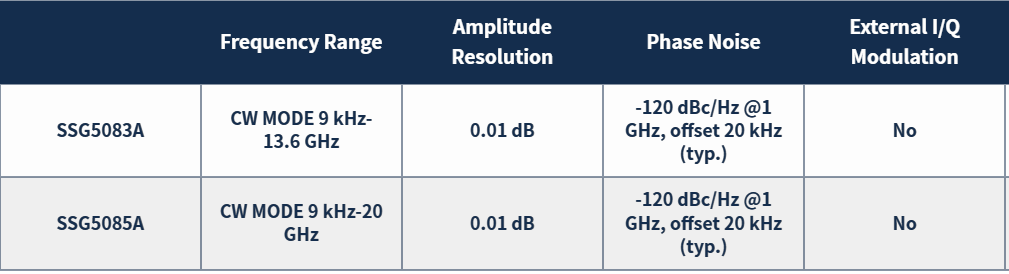

SSG5085A (CW MODE 9 kHz ~ 20 GHz)
SSG5083A (CW MODE 9 kHz ~ 13.6 GHz)


Product Overview
The SSG5083A/SSG5085A microwave signal generators feature output frequency ranges from 9 kHz to 13.6/20 GHz, they support AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. The SSG5000As include an OCXO reference hardware module that ensures high-precision and high stability signal output. It is designed for communication and other fields. And it is suitable for various application scenarios such as R&D and production.
.png)
Key Features
- Frequency up to 13.6 GHz / 20 GHz
- 0.001 Hz frequency setting resolution
- Level setting range: -130 dBm ~ 25 dBm
- Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)
- Level error ≤ 0.7 dB (typ.)
- Provides AM, FM, PM analog modulation with internal, external, or Int+Ext source
- Single pulse, double pulse, and pulse train generator (option)
- The power meter control kit can easily use the power meter to measure power, control power output, and correct line loss
- 5-inch TFT capacitive touch screen, mouse, and keyboard support
- Web browser for easy remote control over LAN
- Standard interfaces include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
