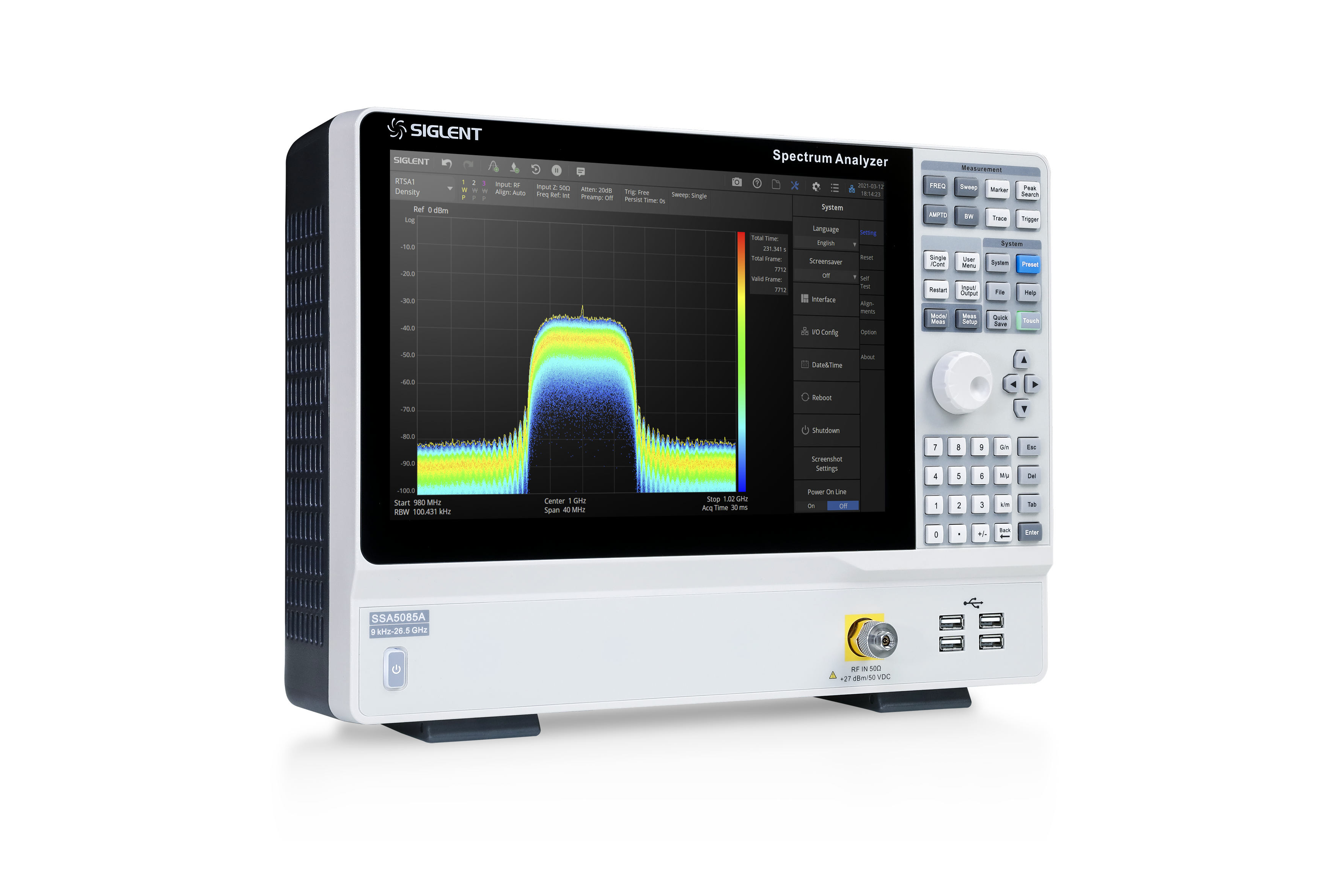

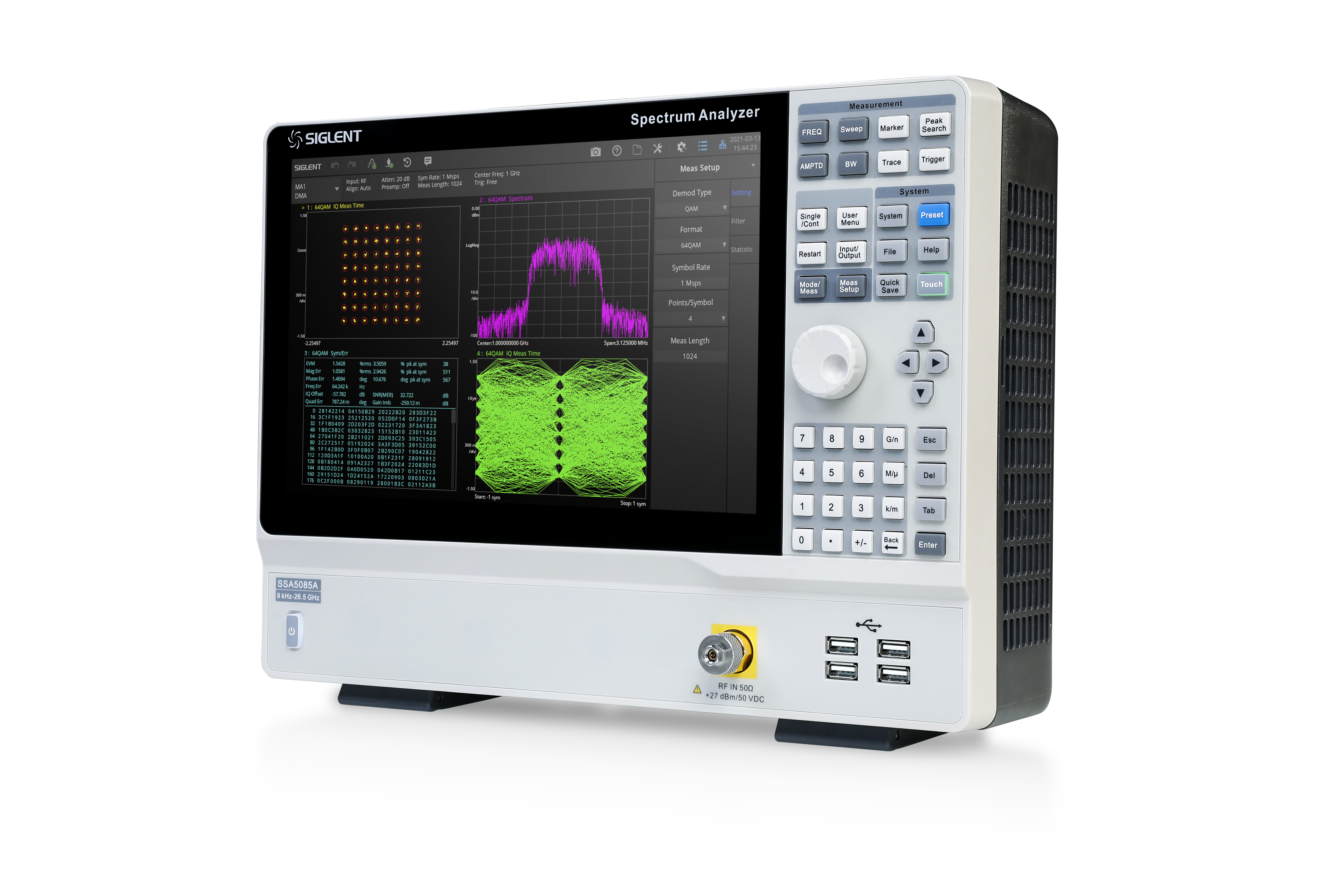

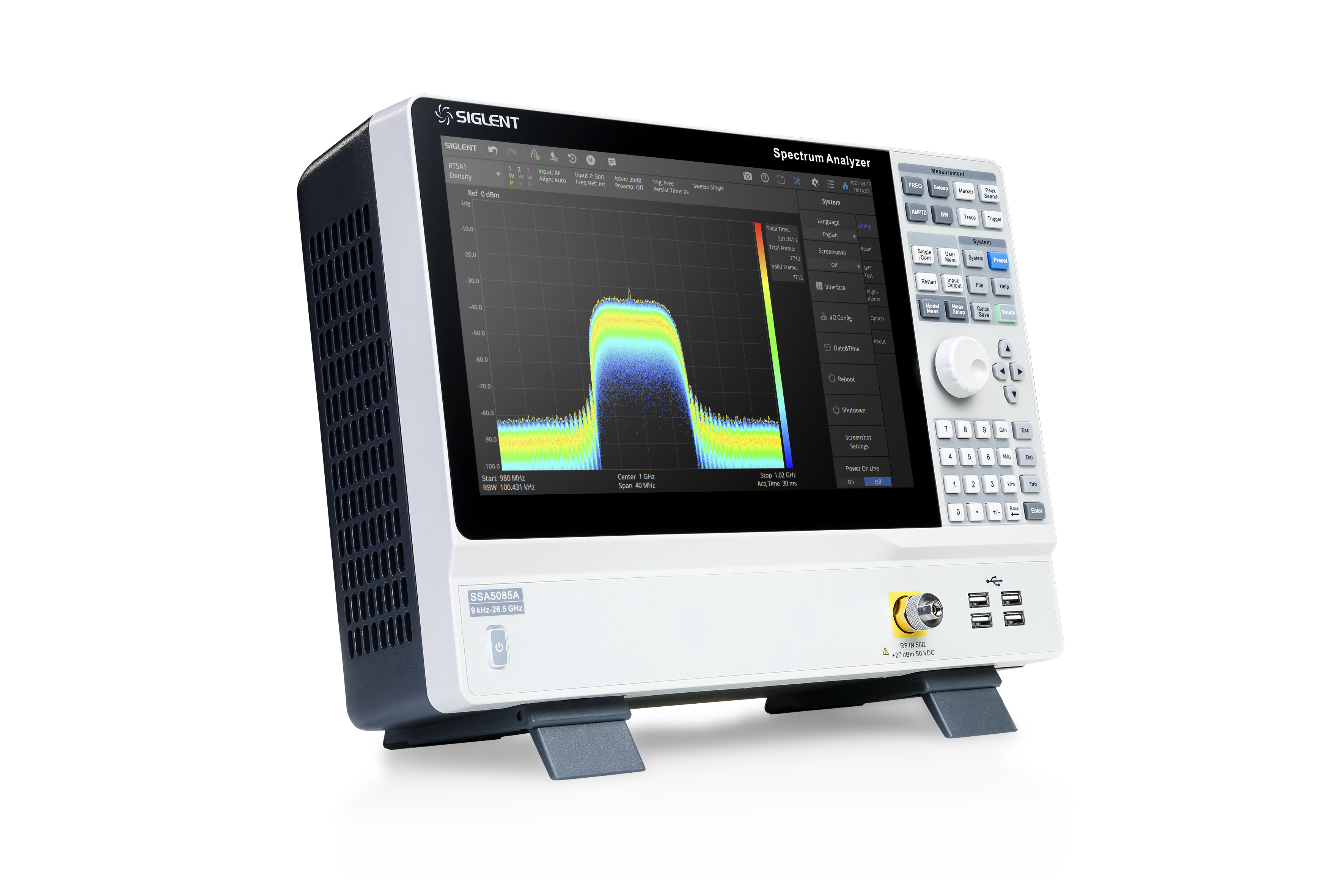

SSA5000A Series Spectrum Analyzer

• Frequency Range from 9 kHz up to 13.6 /26.5 GHz
• -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
• 25 MHz/40 MHz Realtime Spectrum Analysis Bandwidth
• Analog Modulation Analysis and Vector Digital Modulation Analysis
• Channel power, ACPR, OBW, Harmonics, and TOI measurement option
• Web Browser for easy Remote Control over LAN

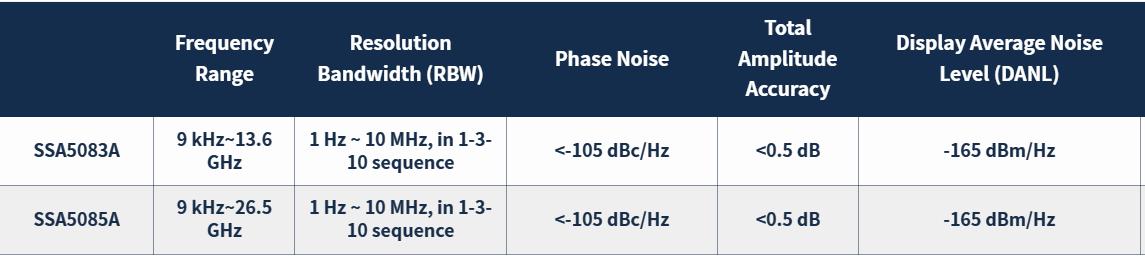

SSA5085A (9 kHz~26.5 GHz)
SSA5083A (9 kHz~13.6 GHz)

Product Overview

The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

Key Features

• Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz/26.5 GHz
• -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
• 25 MHz/40 MHz Real Tine Spectrum Analysis Bandwidth
• 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram, and PvT
• Channel power, ACPR, OBW, Harmonic, TOI measurements and more
• Analog Modulation Analysis and Vector Digital Modulation Analysis
• 12.1-inch Multi-Touch Screen, HDMI output
• Web Browser Remote Control on PC and Mobile Terminals and File Operation
