SVA1000X Spectrum & Vector Network Analyzer

• Vector Network Analysis from 100 kHz- 3.2 / 7.5 GHz (Now included as standard)
• Distance-to-fault (Optional)

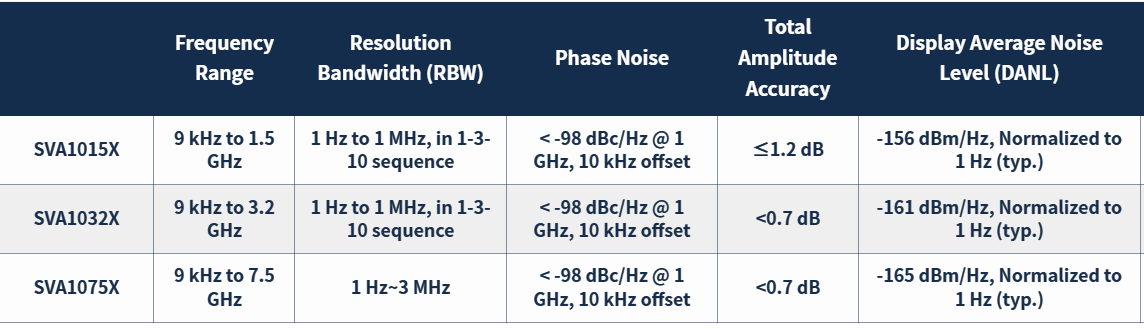

• Frequency Range from 9 kHz to 1.5 / 3.2 / 7.5 GHz  (Spectrum Analyzer mode)
• -156 dBm/Hz / -161 dBm/Hz / -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -99 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
• 1 Hz Minimum Resolution Bandwidth (RBW)

SVA1075X (9 kHz~7.5 GHz)
SVA1032X (9 kHz~3.2 GHz)
SVA1015X (9 kHz~1.5 GHz)

Product Overview

SIGLENT SVA1000X Spectrum and Vector Network Analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5 GHz, the SVA1000X analyzer delivers reliable automatic measurements and multiple modes of operation: the base model is a spectrum analyzer and a vector network analyzer, and optional functions include a distance-to-fault locator, and a vector signal modulation analyzer.

SVA1000X Spectrum and Vector Network Analyzers’ applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

For a full summary of our RF measurement instruments, view our Spectrum Analyzer Features and Options Tables.

Key Features

• Tracking Generator Standard
• Distance To Fault (Opt.*)
• Vector Network Analyzer function (included after 9/23/2019)
• EMI Filter and Quasi-Peak Detector Kit (Opt.*)

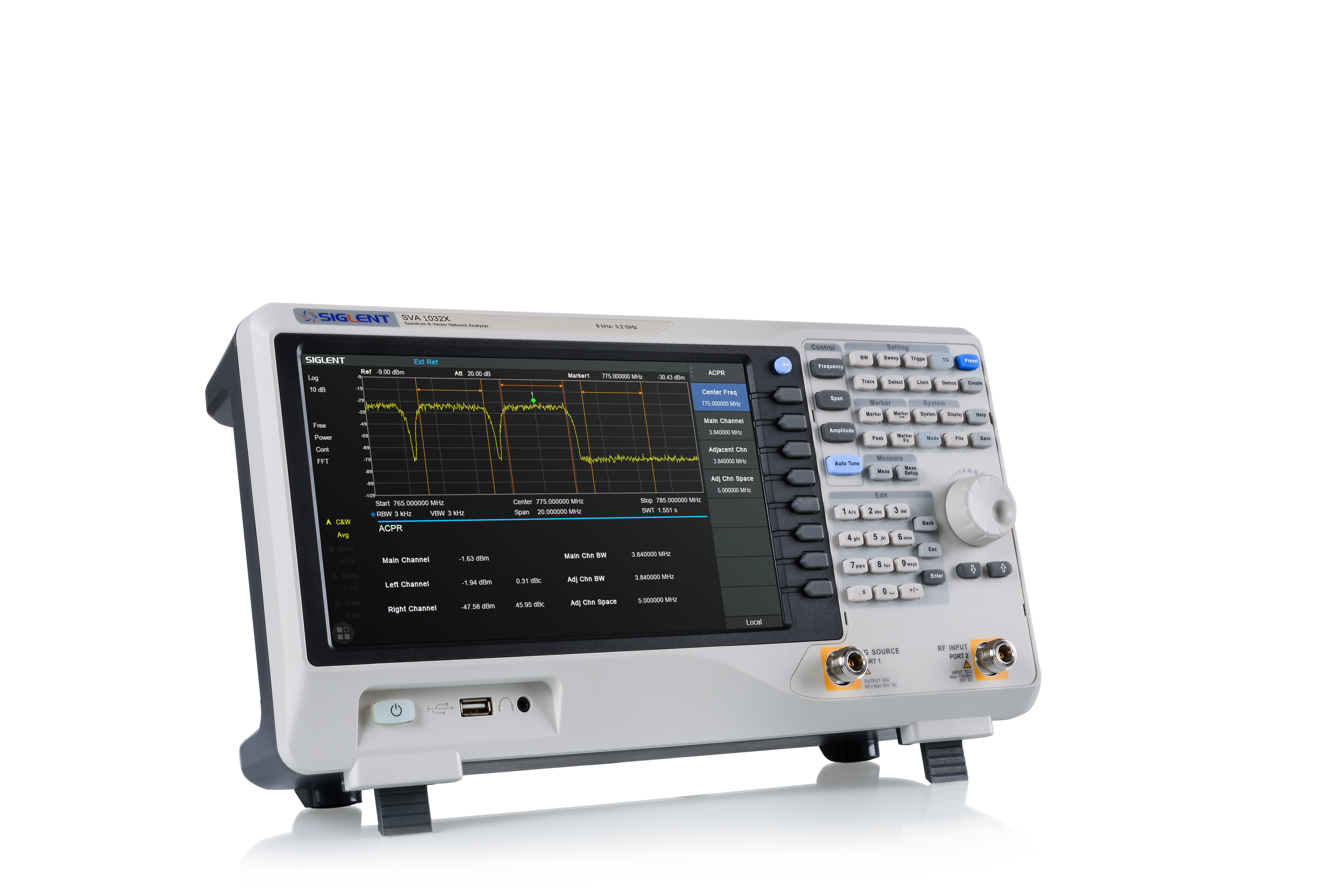

• Advanced Measurement Kit/Waterfall chart (Opt.*)
• 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
• Web Browser Remote Control on PC and Mobile Terminals and File Operation

*New SVA1000X analyzers feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.
