Stainless Steel Honeycomb Core

Features include fire resistant, fungi Resistant, excellent moisture and corrosion resistance etc. It is widely used in honeycomb ventilation panels, dust-filter, flow straightening in wind tunnel or water tunnel, waterjet cutting machines, electromechanical platform, train doors and floors, bulkheads, energy absorber, laser cutter machines, extraction table, etc. In the context of petroleum product counting, stainless steel honeycomb core is currently used to replace aluminum honeycomb to tranquilize the products.

Standard Material: SUS304, SUS316L
Standard Wall Thickness: 0.13mm
Production Process: Laser welding/ Butt welding / Brazing
Cutting Process: Laser cutting/ Wire cutting
Price: Expensive
Package: Carton box or plywood box

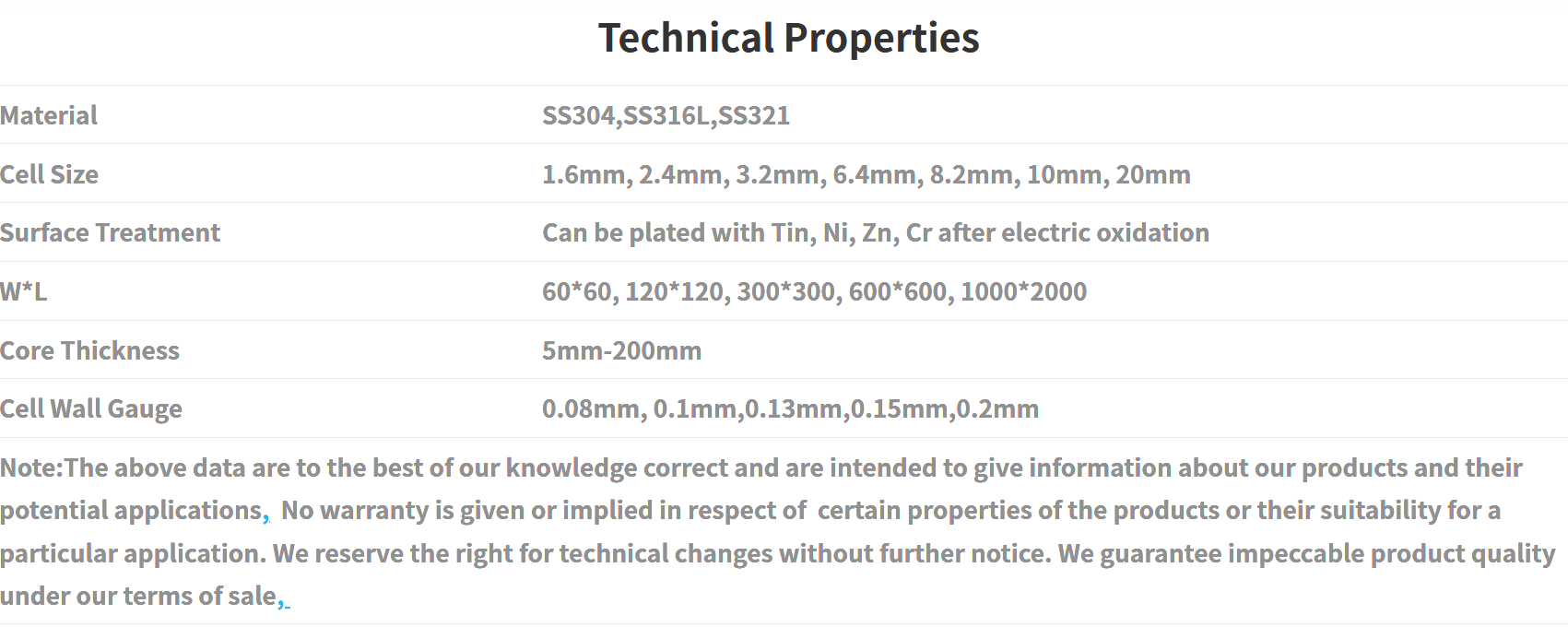

DMC stainless steel honeycomb is available based on below conditions

• Material: 304 stainless steel, 316L stainless steel & 321 stainless steel, special materials such as Nickel can be customized.
• Cell size: 0.8mm, 1.6mm, 2.4mm, 3.2mm, 6.4mm, 10mm, 20mm etc.
• Surface treatment: can be plated with Tin, Ni, Zn, Cr after electric oxidation.
• W*L: 60*60, 120*120, 300*300, 600*600, 1000*2000mm. Can be customized.
• Core thickness: 5mm-200mm.
• Cell wall gauge: 0.08mm, 0.1mm, 0.13mm, 0.15mm, 0.2mm etc.
