DMC RF and Microwave Pyramidal Foam absorbers are made of carbon-impregnated low-density Polyurethane foam and come in various sizes and colors, Our PY-HY series absorbers provide excellent performance in normal incidence and off-angle incidence in Anechoic chamber with excellent impedance matching with Ferrite tiles and support wide frequency bands of operation up to 40 GHz.,

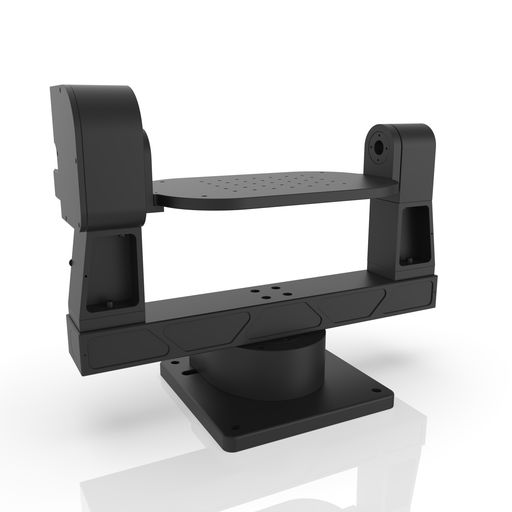

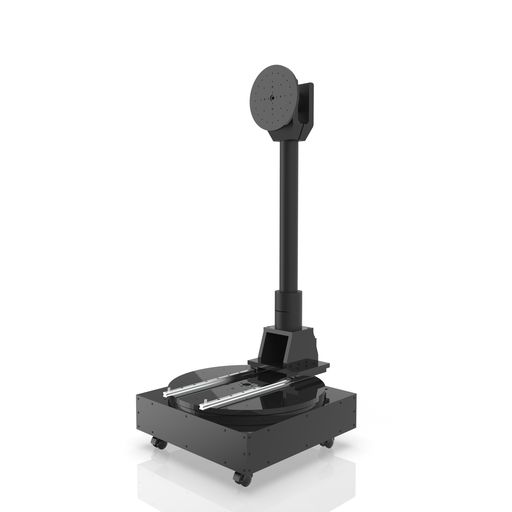

5G FR1 Sub 6GHz over-the-Air (OTA) Test

Technical Specifications:

• Frequency Range: DC to Sub 6 GHz (extendable up to 110GHz)
• Positioning Accuracy: 0.02°
• Payload Capacity : 50 lbs- 2000 lbs
• DUT Test Size: 10cm to 3mtr
• Elevation : ±180°
• Azimuth : 360° continuous
• Roll : 360°

DMC 360 Software features :

• Passive measurement (magnitude and phase)
• Active measurement (TRP, EIRP, TIS, EIS, EVM)
• OTA 2G, 3G, 4G and 5G Testing
• OTA Bluetooth and BLE TRP & TIS testing
• OTA GNSS Testing
• For all bands and common radio systems
  (GSM, UMTS, LTE, LTE-M, NB-IoT) etc

We provide testing according to the 3GPP and ETSI standards including RED conformance testing.

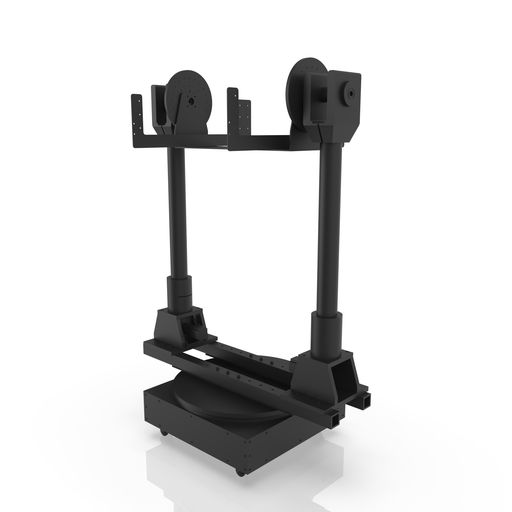

5G FR2 mmWave over-the-Air (OTA) Test

• Frequency Range: DC to 40GHz (Extendable up to 110 GHz)
• Positioning Accuracy: 0.02°
• Payload Capacity : 50 lbs- 2000 lbs
• DUT Test Size: 10cm to 3mtr
• Elevation : ±180°
• Azimuth : 360° continuous
• Roll : 360°
