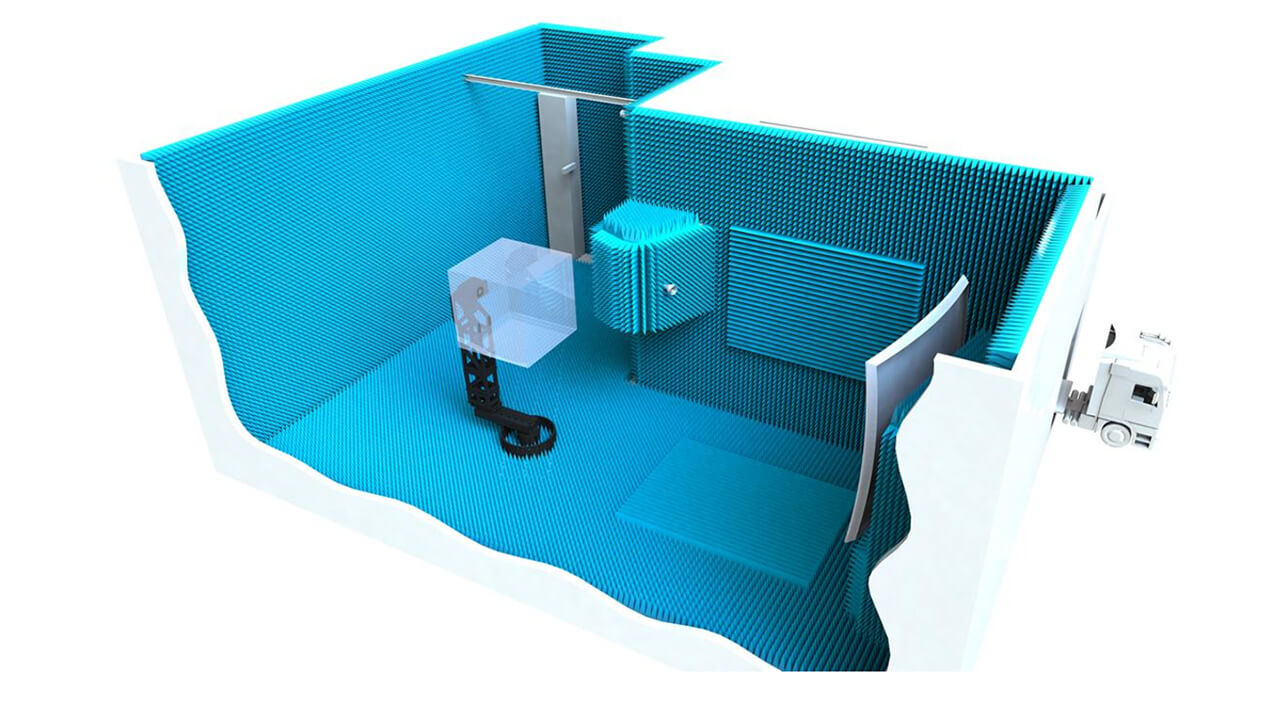

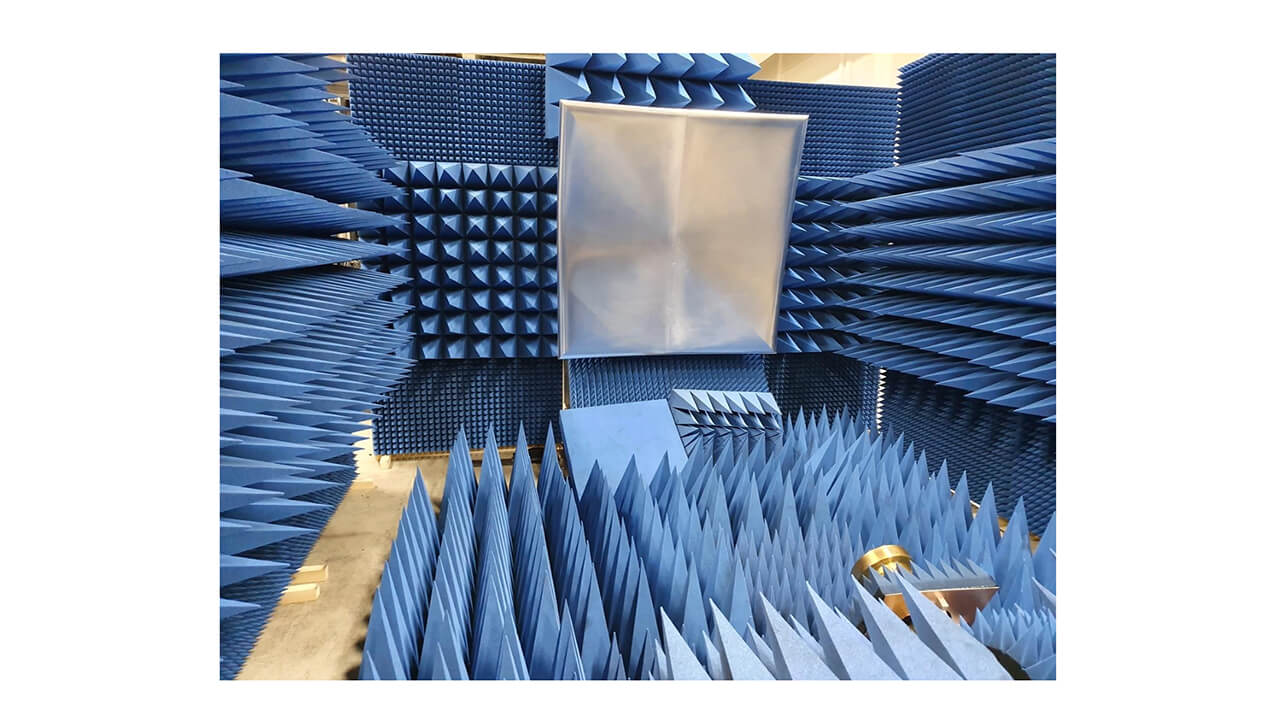

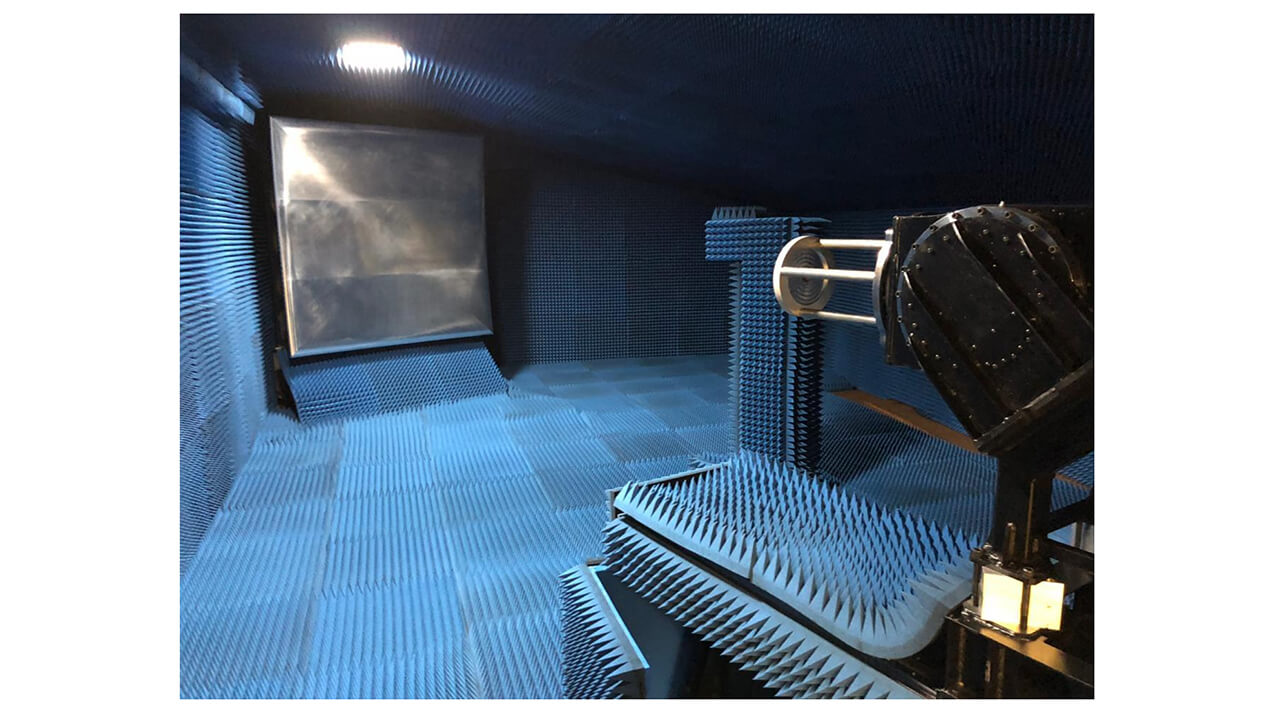

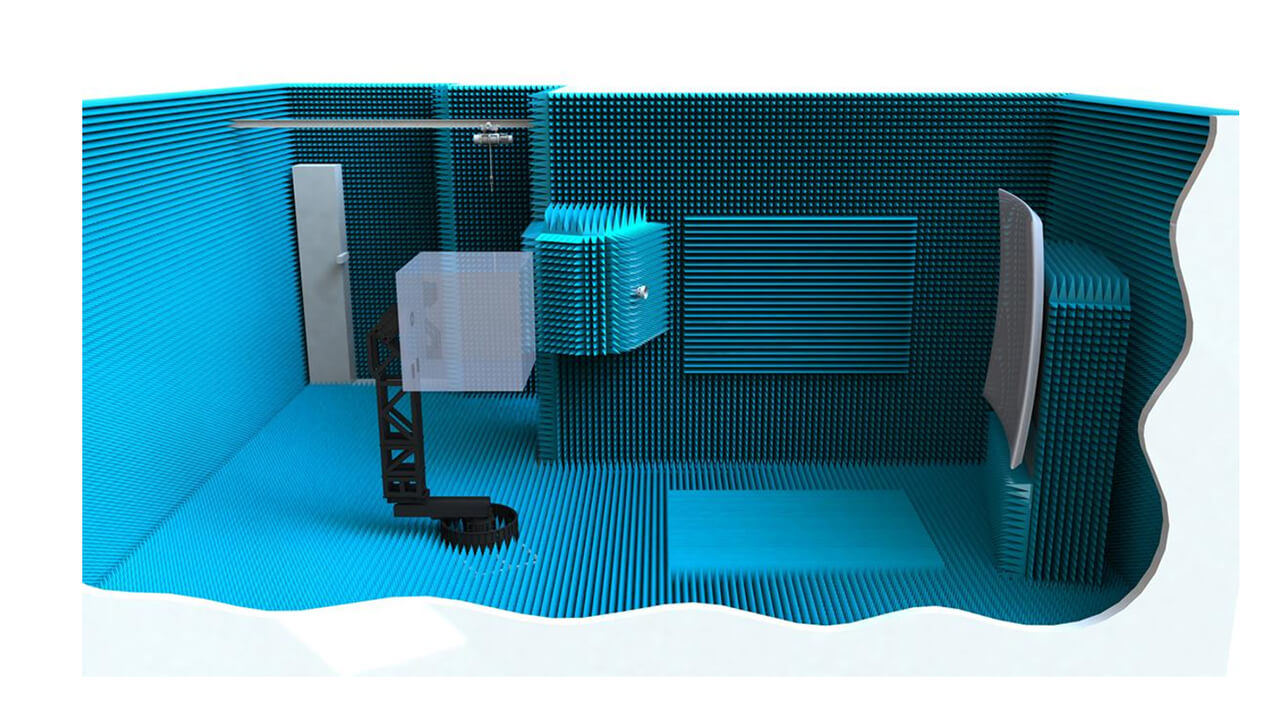

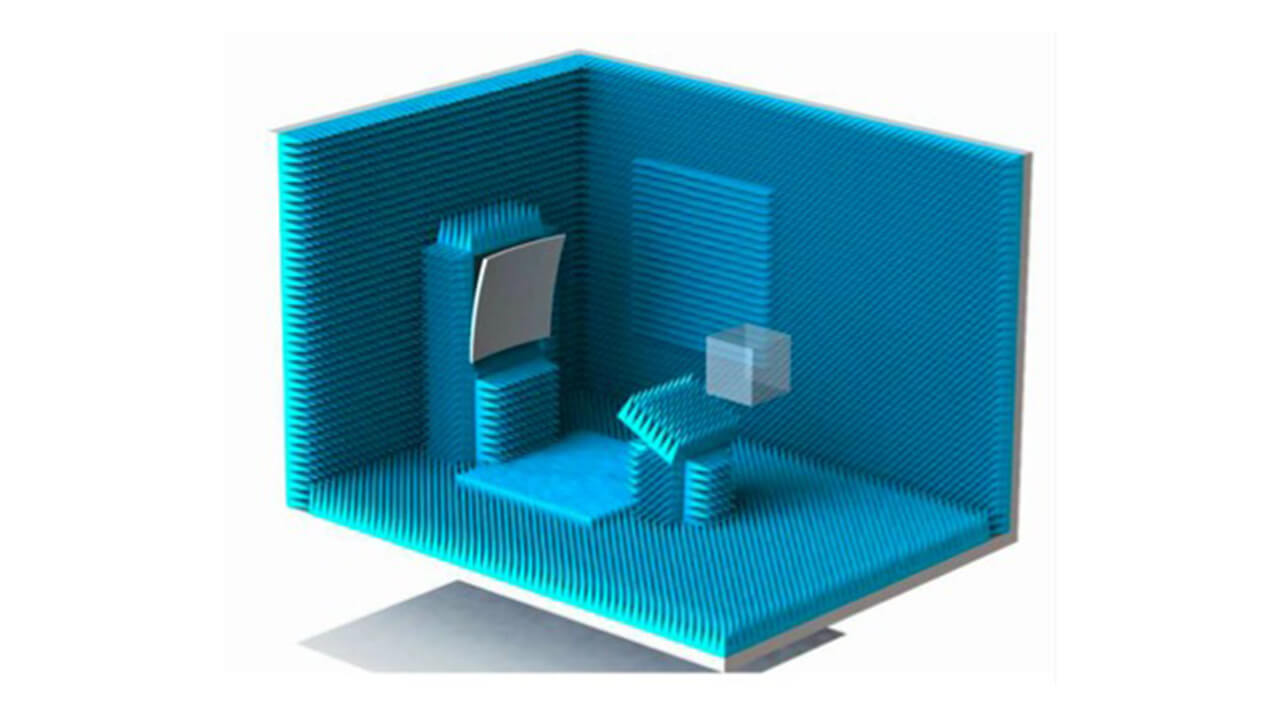

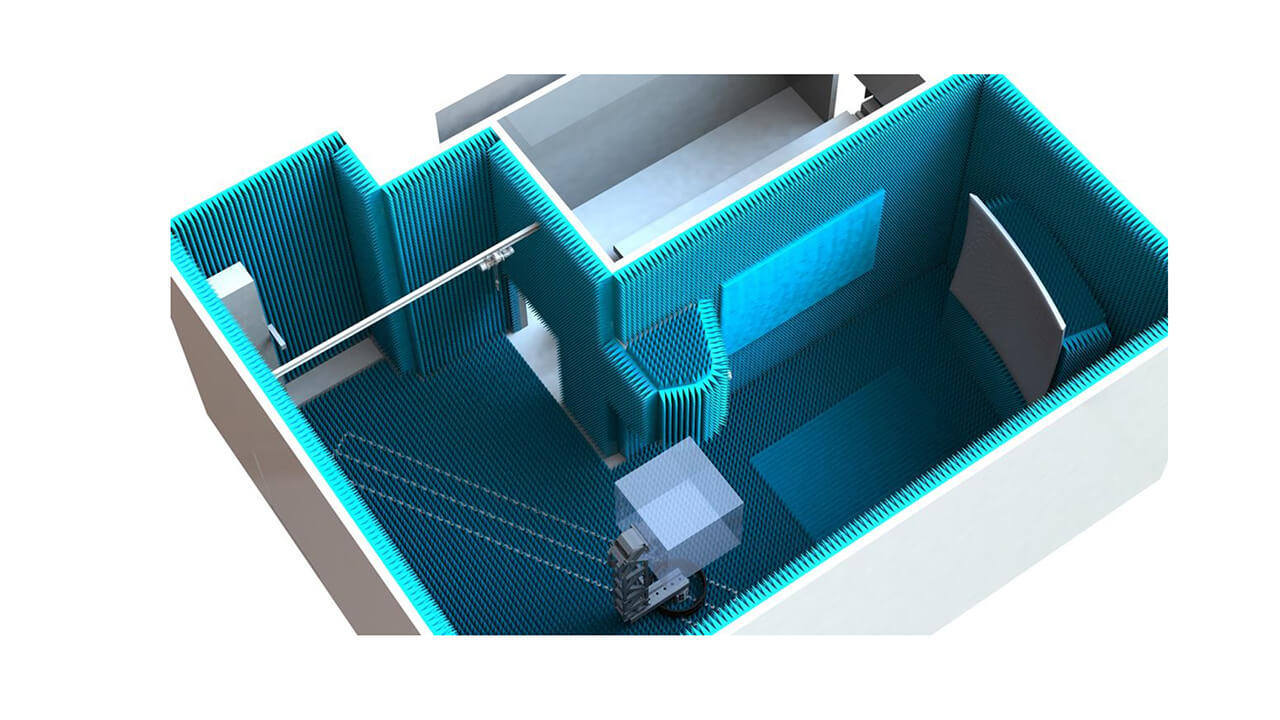

DMC can offer a wide range of Rolled Edge CATR reflectors ranging from 30cmx30cm to maximum size of 3.6х3.6 meters with quiet zone of 1.8 meters.

Our Reflectors are made of more than 250 mm thickness milled Aluminum panels. Our Reflector frame is also made of Aluminum, which provides thermal symmetry of the construction. The design does not suggest any adjustment elements for segment connection, which substantially lowers requirements for reflector maintenance. All elements are milled on precision 5-axis machine with 15 µm/m precision, which provides the highest quality of the working surface.

TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB
