Helmholtz coils, electro magnets, audio amplifiers
|
MagTest
|
Schwarzbeck-Software to test Immunity against magnetic fields and to calibrate monitoring loops. Fulfills standards like MIL-461 E, ISO 11452-8, EN 61000-4-8, SAE J551-17 and others. Control of all required devices via GPIB.
|
LFPA 9733
|
Universal audio frequency power amplifier 5 Hz - 1 MHz for magnetic field im- munity testing, 60 V peak, 40 A peak, protected against overvoltage, short at the
output or overtemperature. For frequencies < 15 Hz a minimum load of 1 Ohm at the output must be connected, e.g. SHUNT 9571 or NFCN 9734.
|
NFCN 9734
|
Universal matching network with built in shunt resistor to compensate for the
inductance of Helmholtz coils, GPIB or RS232 controllable.
|
SHUNT 9571
|
Low inductive high power precision shunt resistor DC-250 kHz,
2 x 0,5 Ohm / 400 W, 1 x 1 Ohm / 800 W, 1 x 250 mOhm / 800 W respectively for best matching at low frequencies, cooling fans. Note: If you order the compensa- tion network NFCN 9731 an additional shunt is not required as the network al- ready contains a shunt.
|
CP 9610
|
Current probe to monitor current through radiating loop or Helmholtz coils. Can be used to measure currents in case a shunt is not allowed (Ford EMC-CS-
2009), including 1m RG223/U BNC-BNC.
|
CABLES
MagTest
|
Cables with banana plugs / -jacks / lugs to connect all components of the Mag- Test System.
|

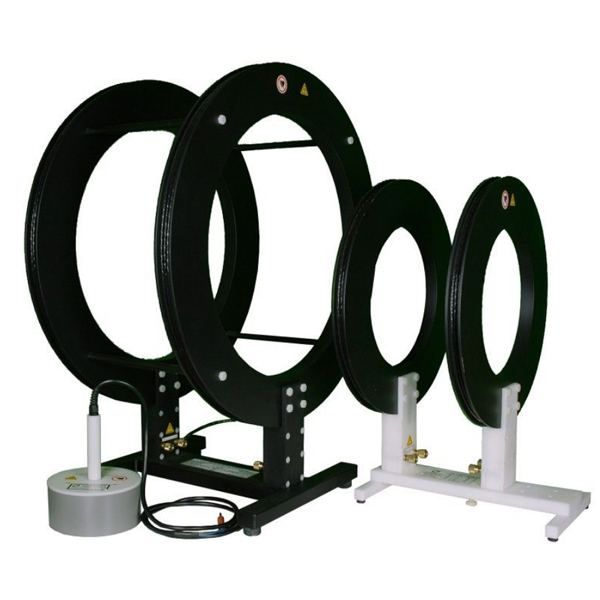

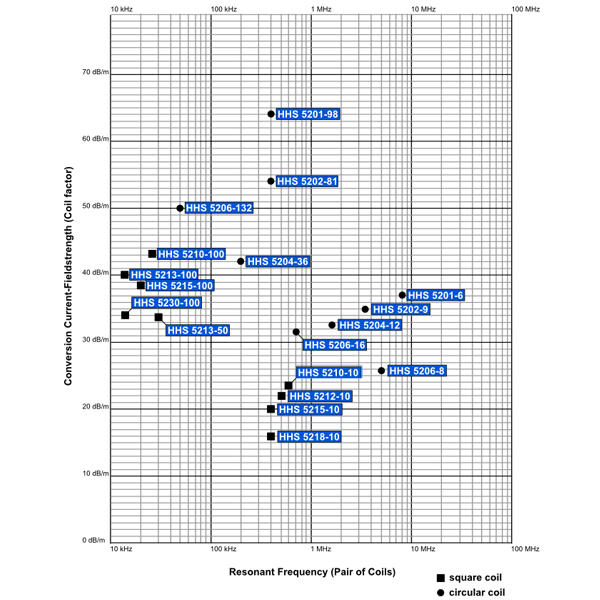

HHS 5201-6
|
Helmholtz Coils circular up to 2860 A/m 5 MHz for DuT size 45 mm.
|
HHS 5201-98
|
Helmholtz Coils circular up to 64 kA/m 200 kHz for DuT size 45 mm.
|
HHS 5202-9
|
Helmholtz Coils, circular, diam. 200 mm, 3053 A/m 2,5 MHz acc. MIL-STD 461E
|
HHS 5202-81
|
Helmholtz Coils, circular, diam. 200 mm, 3000 A/m 300 kHz acc. MIL-STD 461E
|
HHS 5204-12
|
Helmholtz Coils, circular, diam. 400 mm, 2500 A/m 500 kHz MIL-STD 461E
|
HHS 5204-36
|
Helmholtz Coils, circular, diam. 400 mm, 2500 A/m 150 kHz MIL-STD 461E
|
HHS 5204-144
|
Circular pair of Helmholtz coils, diameter 400 mm, up to 10 kA/m, max. current 20 A.
|
HHS 5206-8
|
Circular pair of Helmholtz coils, diameter 600 mm, 8 turns.
|
HHS 5206-16
|
Circular pair of Helmholtz coils, diameter 600 mm, up to 2100 A/m, max. current 55 A.
|
HHS 5206-25
|
Circular pair of Helmholtz coils, diameter 600 mm, up to 2700 A/m, max. current
46 A.
|
HHS 5206-132
|
Circular pair of Helmholtz coils, diameter 600 mm, up to 4713 A/m, max. current 15 A.
|
FESP 5210-1
|
1 x 1 m induction coil side length 100cm, 1 turn, EN 61000-4-8.
|
HHS 5210
|
Helmholtz Coils up to 300 A/m constant H field, 1 m x 1 m, 10 turns per coil, EN 61000-4-8, VDE 0847 part 4-8
|
HHS 5210-100
|
Helmholtz Coils up to 2183 A/m constant H field, 1 m x 1 m, 100 turns per coil, EN 61000-4-8, VDE 0847 part 4-8
|
HHS 5210-
100-2,5
|
Helmholtz coil pair, square shaped, side length 1 m, 100 turns with 2.5 mm di- ameter copper wire (for higher currents with less heat dissipation)
|
HHS 5212
|
Helmholtz Coils up to 250 A/m H field, 1.20m x 1.20 m, 10 turns.
|
HHS 5213-50
|
Helmholtz Coils 1.25 m x 1.25 m, 50 turns per coil, acc. EN 55103-2 A.2.1.b)
|
HHS 5213-100
|
Helmholtz Coils 1.29 m x 1.29 m, 100 turns per coil.
|
HHS 5215
|
Helmholtz Coils up to 200 A/m constant H field, 1,5 m x 1,5 m, 10 turns per coil
|
HHS 5215-100
|
Helmholtz Coils up to 2000 A/m constant H field, 1,5 m x 1,5 m, 100 turns per coil
|
HHS 5215-
100-2,5
|
Helmholtz Coils up to 3900 A/m constant H field, 1,5 m x 1,5 m, 100 turns per coil, wire diameter 2.5mm.
|
HHS 5218
|
Helmholtz Coils up to 126 A/m constant H field, 1,8 m x 1,8 m, 10 turns per coil
|
HHS 5230-100
|
Pair of Helmholtz coils according to SAE J551-17: 2 square coils with a side length of 3m, 100 turns, max. 650 A/m, each coil movable on a wheeled platform.
|
NFCN 9731-
100
|
Matching network for HHS 5230-100 for the following frequencies: 16,666 Hz; 50 Hz; 60 Hz; 150 Hz; 180 Hz. Recommended amplifiers: 2 units of AE Techron
7224.
|
NFCN 9732-
xx
|
Compensations network with a fixed capacitor of xx microfarad capacity. Lowers the total impedance of a series circuitry of HHS and NFCN at a fixed design fre- quency.
|
AGEM 5520
|
Air gap electromagnet for extreme high magnetic field strengths of up to
2.2 Tesla.
|
HS 5136
|
Hall probe to measure magnetic fields DC-200 kHz including 30 V power supply.
|
Opt. 5136 ZG
|
Zero-Gauss-chamber to shield from external magnetic fields to calibrate hall probe HS 5136.
|
FESP 5132
|
Radiating loop diam. 12 cm, 20 turns, DC to 250 kHz, max 15 A, 2x Banana jack
4mm, ISO 11452-8, MIL-STD 461E p. 108, EN 55103 5.18.3.2
|
LoopHolder50
|
Calibration fixture to hold FESP 5134-40 in FESP 5132 in a distance of 50 mm acc. MIL461E figure RS101-3.
|
FESP 5134-40
|
Loop Sensor / Antenna, diam. 4 cm, 51 turns, 5 Hz to 250 kHz, electrostatic
shielding, BNC jack.
|
FESP 5133
|
Loop Sensor / Antenna, 36 turns in 4 layers, diam. 133 mm, EN 55103-1 A.2.b),
EN 55103-2 A.4.1 0 – 200 kHz, banana plugs (standard) or BNC connector fe- male.
|
FESP 5133-9
|
Circular Transmitting Loop Antenna, 133mm diameter, 10 kHz to 3 MHz, includ- ing 5cm distance ring, suitable for VG 95377 Part 13 or Volvo Immunity against magnetic fields.
|
FESP 5133- 7/41
|
Circular shielded loop sensor to determine the magnetic field strength
5 Hz – 250 kHz. 36 turns AWG 7/41, diameter 133 mm, distance gauge 7 cm included. MIL 461E RE101 or RS101 alternative test procedures.
|
FESP 5133-F
|
Circular shielded loop sensor to determine the magnetic field strength 5 Hz to
250 kHz. 36 turns with nominal resistance of 7 Ohm, diameter 133 mm, distance gauge 7 cm included. MIL 461F and G RE101or RS101 alternative tests.
|
FESP 5133
1330
|
Circular radiating loop for extremely high field strength up to several mT, 225 turns, acc. SF 01 G, VG95377. |
FESP 5135 | Radiating coil diam. 0.5 m, 20 turns in one layer, acc. EN 55103-2 A.3.1 |
RSAL 5340 | LF 3-dimensional magnetic rolling stock antenna for the lower frequency range acc. to CLC/TS 50238-3:2010. 10 kHz to 100 kHz. |
RSAH 5324 |
3-dimensional magnetic rolling stock antenna for the higher frequency range acc.
to CLC/TS 50238-3:2010. 100 kHz to 1.3 MHz.
|
RSA COVER | Dirt and weather protection cover to house the rolling stock antennas RSAL 5340 or RSAH 5324 and to fix the antenna to the rail track. |
